Product Overview:
Maximum Performance for the Most Demanding Outdoor Projects
Các Đèn pha đèn LED cao from Lacelesty is a robust and adaptable lighting solution engineered for stadiums, airports, ports, logistics centers, and large infrastructure zones. Với power options ranging from 30W to 435W, it provides consistent, powerful illumination across wide areas.
This fixture features an advanced thermal management system, pressure-equalizing waterproof vents, và a modular control setup, making it suitable for environments requiring both durability and intelligent control. Choose between standard on/off, DMX512, or RDM control for dynamic lighting effects, including RGBW or tunable white.
The sleek, curved rectangular body constructed from AL6063 die-cast aluminum gives it a modern look while enhancing heat dissipation and corrosion resistance.
Key Features:
Available Power: 30W / 60W / 90W / 190W / 290W / 435W
Control Options: Standard On/Off / DMX512 / RDM / Constant Power
RGBW &; Tunable White (2700K–6000K): Ideal for dynamic lighting scenes

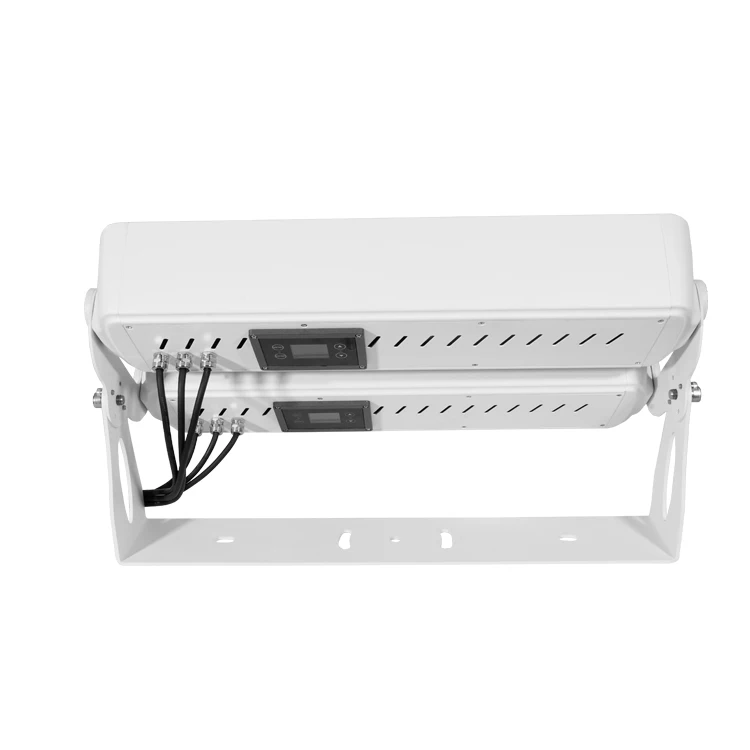

Triple Ventilation Thermal Design: Top, bottom, and side airflow
Independent Dual-Chamber Design: Reduces heat impact on driver

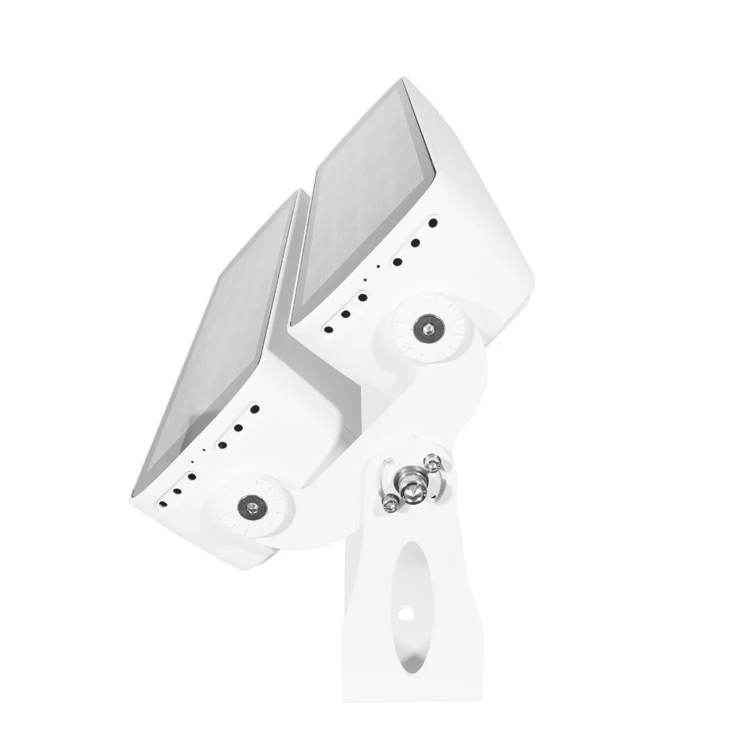

360° Adjustable Bracket: With angle indicators and multiple mounting points
Chống nước theo tiêu chuẩn IP65 + Pressure Vent: Prevents internal condensation
Streamlined Body Design: Sleek, modern housing enhances architectural aesthetics
High-Efficiency Optics: Multiple beam angles from narrow spot to wide flood
Specifications:
;
Sự chỉ rõ | Detail |
---|---|
Tùy chọn năng lượng | 30W / 60W / 90W / 190W / 290W / 435W |
Hiệu quả phát sáng | 100 lm / W |
CCT Range | 3000K / 4000K / 6000K / 2700K–6000K (Tunable White) |
RGBW Support | Đúng (DMX512 / RDM) |
Beam Angles | 3° / 15° / 25° / 30° / 45° / 60° |
Điện áp đầu vào | AC220–240V |
Đánh giá IP | IP65 |
Chip LED | CREE / OSRAM |
Trình điều khiển đèn LED | MOSO / Hút thuốc / MEAN WELL |
Mounting | 360° Adjustable U-Bracket with Multiple Installation Holes |
Housing Material | AL6063 Die-cast Aluminum |
Surface Colour Options | Đen / Trắng / Dark Grey / Light Grey |
Kích thước (mm) | Varies by wattage – contact us for detailed specs |

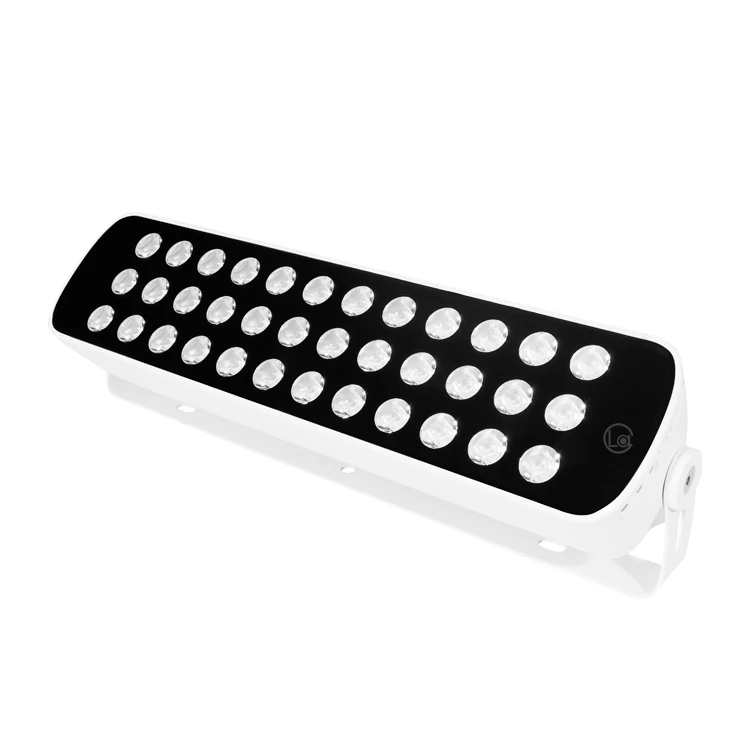

F6700-30W
Lumens:100lm / W
Góc chùm:3°/15°/25°/30°45°/60°
Kích thước mm:L294*W149*H158

F6700-60W
Lumens:100lm / W
Góc chùm:3°/15°/25°/30°45°/60°
Kích thước mm:L462*W149*H158

F6700-90W
Lumens:100lm / W
Góc chùm:3°/15°/25°/30°45°/60°
Kích thước mm:L630*W149*H158

F6701-48W
Lumens:100lm / W
Góc chùm:25°/35°50°/65°
Kích thước mm:L294*W149*H158

F6701-96W
Quyền lực:96W
Góc chùm:25°/35°50°/65°
Kích thước mm:L462*W149*H158

F6701-145W
Lumens:100lm / W
Góc chùm:25°/35°50°/65°
Kích thước mm:L630*W149*H158

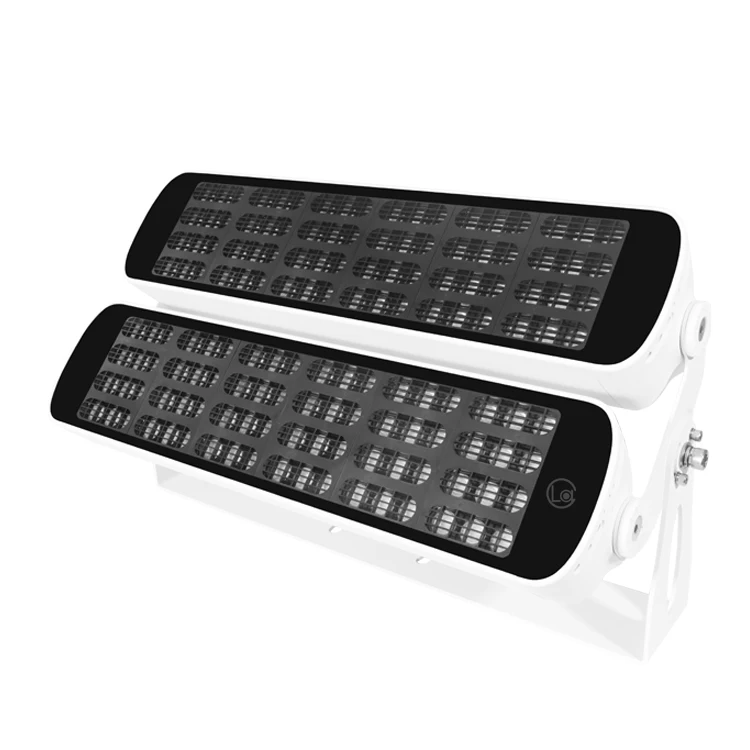

F6702-190W
Lumens:100lm / W
Góc chùm:25°/35°50°/65°
Kích thước mm:L494*W319*H303

F6703-290W
Lumens:100lm / W
Góc chùm:25°/35°50°/65°
Kích thước mm:L662*W319*H303

F6704-435W
Lumens:100lm / W
Góc chùm:25°/35°50°/65°
Kích thước mm:L716*W489*H453



Lacelesty: Đúng, chúng tôi hoan nghênh đơn đặt hàng mẫu để thử nghiệm và kiểm tra chất lượng. Mẫu hỗn hợp được chấp nhận.
