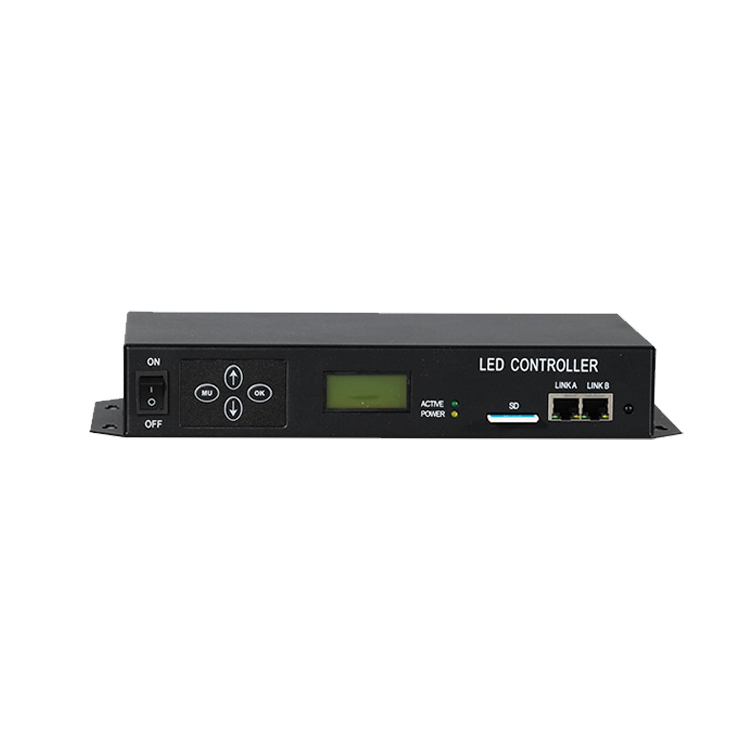

MR-3F12B Hauptsteuerung

Downloads

Produktübersicht

Die MR-3F12B Hauptsteuerung is a high-performance LED lighting control system designed for large-scale architectural lighting, landscape lighting, and nightscape lighting projects. Supporting both DMX512 and SPI protocols, it provides flexible control solutions for various LED fixtures, including pixel lights, RGB, RGBW, and multi-color lighting systems.

With a maximum capacity of 450,000 channels, the MR-3F12B meets the requirements of complex lighting installations. The controller supports SD card offline playback, online network control, and multiple preset effects, enabling stable and reliable operation for commercial buildings, bridges, theme parks, city landscapes, and other large outdoor lighting applications.

Equipped with advanced features such as multi-controller backup, dual network output, remote updates, and real-time monitoring through an LCD display, the MR-3F12B provides a powerful and scalable solution for professional LED lighting control projects.

Wichtigste Merkmale

Ultra-Large Channel Capacity

Supports up to 450,000 output channels, providing powerful control capability for large-scale LED lighting projects.

DMX512 & SPI Protocol Support

Compatible with both DMX512 and SPI control protocols, allowing flexible integration with different LED lighting systems.

SD Card Offline Playback

Supports up to 64GB SD card storage with up to 99 preset program files, enabling offline operation without a computer connection.

Flexible Control Modes

Supports:

• Automatic playback
• Scheduled playback
• Holiday preset programs
• Online and offline control modes

Advanced Cascade System

Supports unlimited cascade of sub-control systems within the total channel capacity, suitable for complex project layouts.

Multiple Lighting Effect Control

Supports:

• Single color
• Dual color
• RGB
• RGBW
• RGBWY
• Multi-color mixing control

Intelligent Backup System

Merkmale:

• Multi-loop backup
• Multiple master controller hot backup
• Dual network output
• Signal redundancy design

Ensuring uninterrupted lighting performance.

Easy On-Site Operation

Built-in buttons, external remote control support, and LCD display allow convenient adjustment of:

• Program selection
• Brightness
• White balance
• Playback speed
• Controller status

Breites Spektrum an Umgebungsbedingungen

Designed for harsh environments with operating temperatures from:

-40°C to +80°C

Suitable for demanding outdoor applications.

Remote Network Management

Supports:

• LAN remote program update
• Internet remote control
• Wireless network transmission
• Fiber optic signal transmission

Technische Daten

Typical Applications

• Architectural Facade Lighting
• Building Media Facade
• Landscape Lighting
• Bridge Lighting
• City Nightscape Lighting
• Theme Park Lighting
• Pixel LED Display
• RGB / RGBW LED Projects
• Commercial Complex Lighting
• Large Outdoor Decorative Lighting
