Casambi 5-in-1-CV-Controller NB.1

Produktübersicht

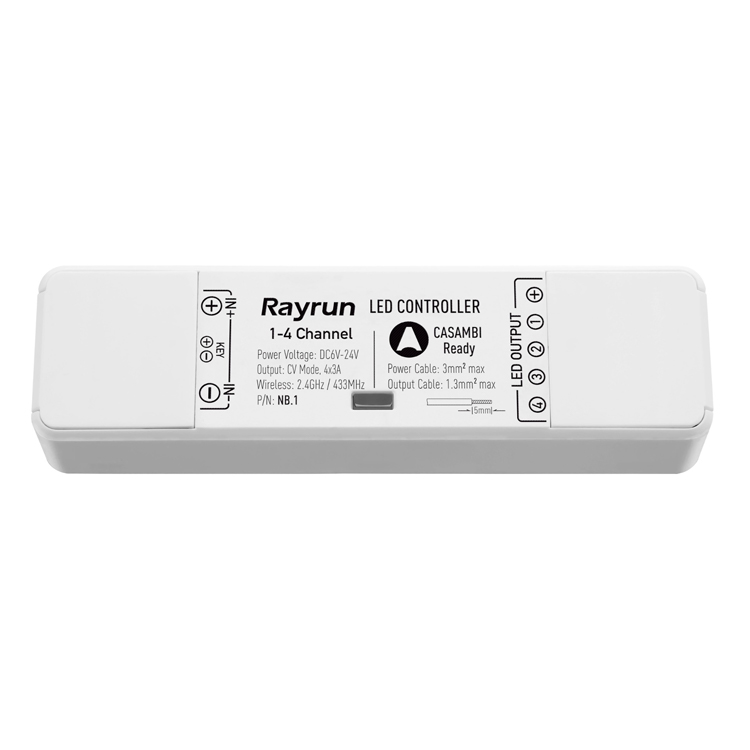

Die CASAMBI 5-in-1 CV Controller NB.1 is a smart constant voltage LED controller designed for controlling Single Color, CCT, RGB, RGBW, and 4-channel dimming LED products with a DC 6-24V power supply.

Powered by the advanced Casambi Bluetooth Low Energy (BLE) lighting platform, the NB.1 provides flexible wireless control through the Casambi App on iOS and Android devices. Users can easily configure lighting modes, brightness, colors, group control, gradient speed, and other parameters through the app.

With additional support for 433MHz RF remote control and onboard press-key operation, the NB.1 offers multiple control options for different application requirements. Built-in protection functions including wrong wiring, overload, short circuit, and overheat protection ensure reliable and safe operation.

---

Wichtigste Merkmale

5-in-1 LED Control Mode

One controller supports multiple LED applications:

• Single Color LED
• CCT Tunable White LED
• RGB LED
• RGBW LED
• 4-channel independent dimming

The operation mode can be configured through the Casambi App, reducing the need for multiple controllers.

---

Casambi Bluetooth Smart Control

Integrated with the Casambi wireless lighting ecosystem.

Control via:

• Casambi App
• iOS devices
• Android devices

Smart functions include:

• Brightness adjustment
• Color setting
• Group control
• Lighting scene management
• Gradient speed adjustment
• Parameter configuration

---

Multiple Control Methods

Supports three control options:

Casambi App Control

Wireless BLE control through smartphone or tablet.

RF Remote Control

Compatible with:

• RM05 remote controller
• Compatible 433MHz RF remote controllers

Press Key Control

Built-in button supports:

• ON/OFF
• Dimming

---

High Precision PWM Output

Provides smooth LED dimming performance.

Merkmale:

• PWM output grade: 4000 levels
• PWM frequency: 500Hz-4KHz configurable
• Smooth brightness adjustment
• Excellent color consistency

---

Constant Voltage LED Control

Designed for DC voltage LED products.

Working voltage:

DC 6-24V

Output capability:

• Each channel: 3A
• Total maximum output: 12A

Suitable for various low-voltage LED lighting applications.

---

Comprehensive Protection Function

Built-in protection:

• Wrong wiring protection
• Overload protection
• Short circuit protection
• Overheat protection

Ensures stable operation and extended product lifespan.

---

Technische Daten

---

Technical Parameters

Power & LED Connection

Power Connector

• Copper block screw terminal
• Maximum cable size: AWG12

LED Connector

• Slot screw terminal
• Maximum cable size: 18AWG per slot
