Descripción general del producto

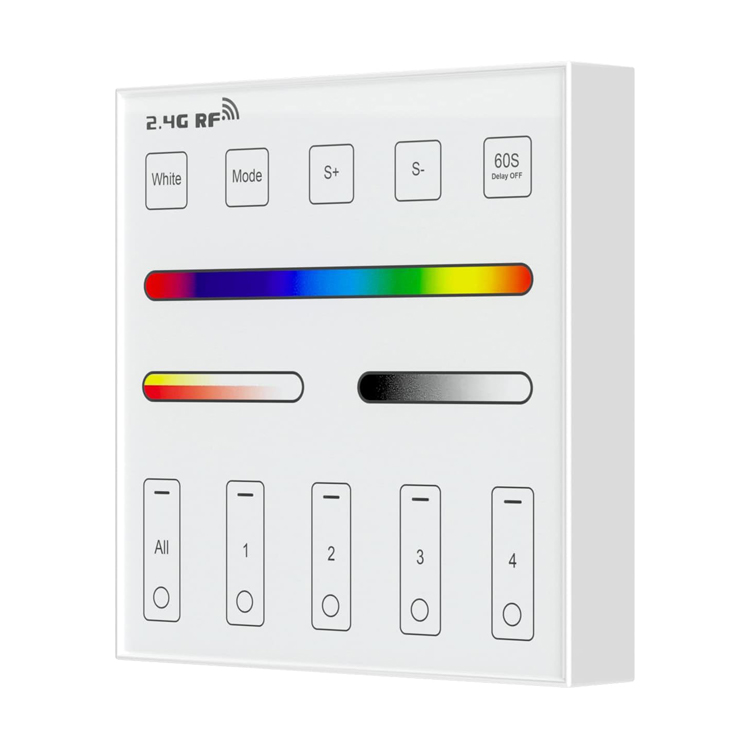

El RGB RGBW RGBCCT Wireless 2.4G RF 4 Zones Wall Mounted Smart Panel WR01RF is a multifunctional touch wall panel remote designed for controlling RGB, RGBW, and RGBCCT LED lighting systems. Using advanced 2.4GHz RF wireless transmission technology, it provides stable, flexible, and convenient lighting control without additional wiring.

Supporting 4-zone independent control, the WR01RF can manage multiple LED controllers and lighting areas separately. Users can easily adjust brightness, select colors, and create dynamic lighting effects through the sensitive touch panel.

Compatible with C03RF, C04RF, C05RF, C03W, C04W, C05W, WB5, LM052, and LM053 controllers, this wireless wall panel is ideal for smart homes, hotels, commercial spaces, and architectural lighting applications.

---

Características principales

2.4GHz Wireless RF Control

Adopts advanced 2.4GHz RF wireless transmission technology.

Ventajas:

• Wireless installation
• No additional wiring required
• No need to modify existing electrical circuits
• Flexible installation location
• Stable signal transmission

Control distance:

Up to 30m (98ft)

---

4-Zone Independent Control

Compatible con:

4 separate lighting zones

Características:

• Each zone can control unlimited compatible LED controllers
• Independent brightness and color adjustment
• Multiple controllers can be managed in different areas
• Each controller supports pairing with up to 4 remote devices

Suitable for multi-room and large-area lighting projects.

---

RGB / RGBW / RGBCCT Lighting Control

Compatible con:

RGB LED Strip

Connection:

• V+
• R
• G
• B

RGBW LED Strip

Connection:

• V+
• R
• G
• B
• W

RGBCCT LED Strip

Connection:

• V+
• R
• G
• B
• C
• W

Compatible con:

• 16 million RGB colors
• Pure white lighting
• Color selection
• Ajuste del brillo
• Dynamic lighting modes

---

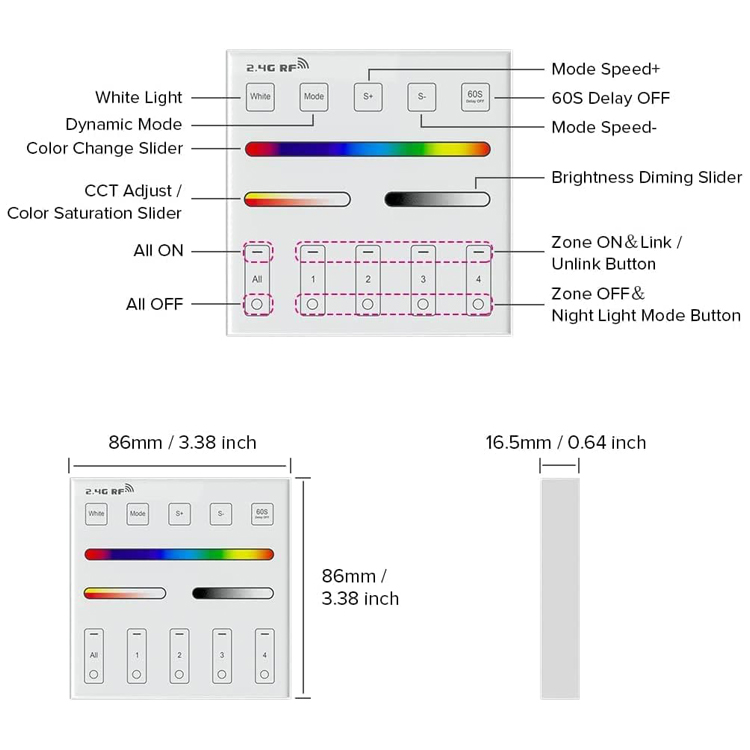

Touch Screen Operation

Características:

• Sensitive touch buttons
• Stable touch response
• Modern wall panel design
• Easy color and brightness adjustment

Provides a premium smart lighting control experience.

---

Multiple Lighting Effects

Compatible con:

• Brightness adjustment: 1%-100%
• 16 million colors
• 9 color changing modes
• RGB color selection
• White light output

Users can create different lighting atmospheres according to application needs.

---

Battery Powered Wireless Installation

Powered by:

2 × AAA batteries

(No batteries included)

Ventajas:

• No requiere cableado
• Fácil instalación
• Suitable for renovation projects
• Can be mounted or pasted on walls

---

Especificaciones

---

Compatible Controllers

The WR01RF works with:

• C03RF RGB Controller
• C04RF RGBW Controller
• C05RF RGBCCT Controller
• C03W WiFi & BT RGB Controller
• C04W WiFi & BT RGBW Controller
• C05W WiFi & BT RGBCCT Controller
• WB5 Controller
• LM052 5-in-1 Controller
• LM053 Controller
