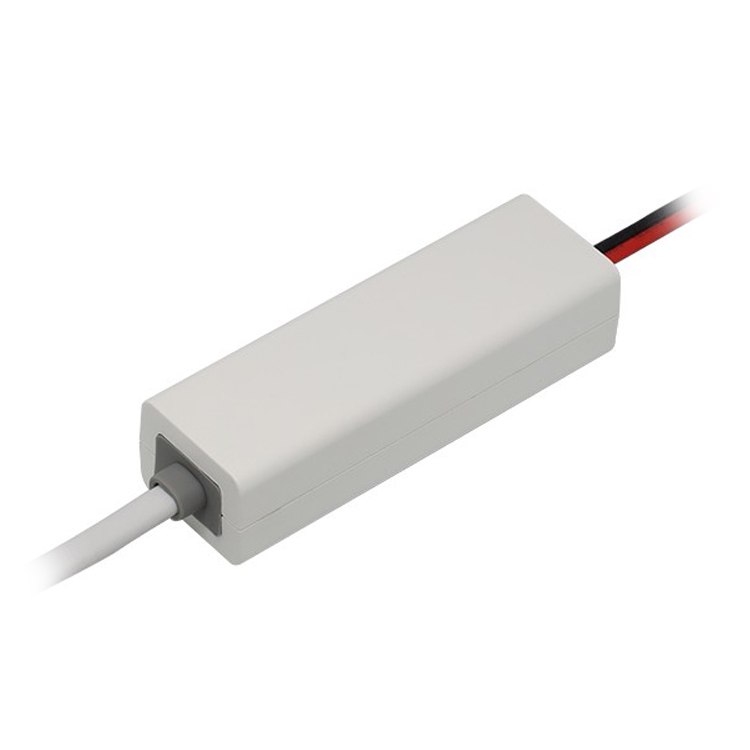

Adaptador de Casambi a DALI HCB30

Descripción general del producto

El Adaptador de Casambi a DALI HCB30 is a smart lighting interface designed to connect the Casambi wireless lighting system with standard DALI and 0-10V LED drivers. It receives commands from the Casambi App via Bluetooth Low Energy and converts them into DALI bus or 0-10V control signals for professional lighting applications.

With a built-in DALI bus power supply, the HCB30 can directly power DALI devices without requiring an additional external DALI power supply, simplifying system installation and reducing project complexity.

Supporting DALI single color, DALI CCT, and 0-10V dimming profiles, the controller provides flexible lighting control options. The compact housing, advanced protection functions, and optional IP68 waterproof version (-S) make it suitable for architectural lighting, commercial projects, and smart building applications.

Características principales

Casambi Wireless to DALI / 0-10V Conversion

The HCB30 bridges Casambi wireless control with traditional lighting control systems.

Functions:

• Casambi signal receiving
• DALI bus signal conversion
• 0-10V signal conversion
• Single color dimming control
• CCT lighting control

Allows existing DALI and 0-10V LED drivers to integrate into Casambi smart lighting networks.

Built-in DALI Power Supply

Integrated DALI bus power supply eliminates the need for an external DALI power supply.

Output:

• Voltage: 10-16V
• Current: 50mA

Ventajas:

• Simplified wiring
• Reduced installation cost
• Compact system design
• Improved project reliability

Casambi Bluetooth Low Energy Control

Supports wireless control through the Casambi ecosystem.

Características:

• Smartphone APP configuration
• Wireless lighting adjustment
• Broadcast dimming control
• CCT control
• Flexible profile configuration

Wireless communication:

• Protocol: Casambi BLE
• Frequency: ISM 2.4GHz
• Distance: >15m in open area

Multiple Lighting Profiles

Configurable through Casambi App.

Compatible con:

• DALI Single Color
• DALI CCT
• 0-10V Single Color

Suitable for various LED driver systems and lighting applications.

IP68 Waterproof Option

Available versions:

Standard Version

• IP63 protection

HCB30-S Version

• Protección impermeable IP68

Adecuado para:

• Iluminación exterior
• Iluminación paisajística
• Architectural applications
• Harsh environments

Comprehensive Protection Design

Built-in protection functions:

• Protección contra errores de cableado
• Protección contra sobrecargas
• Protección contra cortocircuitos
• Protección contra el sobrecalentamiento

Ensures stable and safe operation.

Especificaciones
