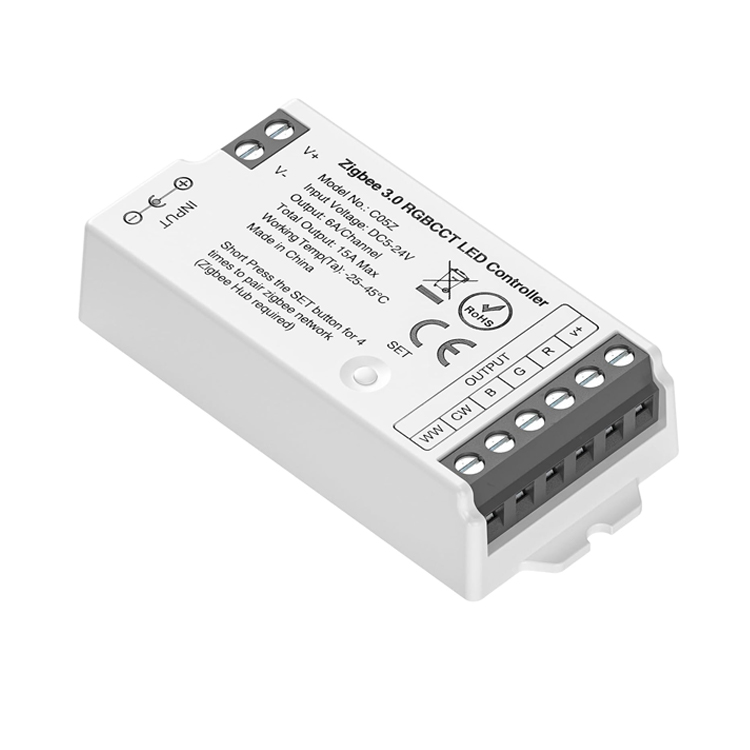

Zigbee 3.0 RGB CCT LED Controller C05Z

Обзор продукта

Этот Zigbee 3.0 RGB CCT LED Controller C05Z is a smart wireless LED controller designed for controlling 6-wire PWM RGBCCT LED strips through Zigbee 3.0 technology. Compatible with Tuya Smart and Smart Life APP, it enables intelligent lighting control with functions including RGB color adjustment, dual white control, brightness adjustment, automation, and scene management.

Supporting DC5V–24V input voltage and up to 15A total output current, the C05Z is compatible with various RGBCCT LED strips including FCOB, COB, 5050, 5630, 5730, 3528, 2835, and other non-IC LED strips. It provides independent control of RGB colors, cool white, and warm white channels, allowing users to create flexible lighting effects for different environments.

With support for Alexa, Google Home, Echo Plus, and Matter-compatible gateways, the C05Z offers a reliable smart lighting solution for residential, commercial, and architectural lighting applications.

---

Основные особенности

Zigbee 3.0 Smart Wireless Control

Supports Zigbee 3.0 communication technology for stable, low-power, and reliable smart lighting control through compatible Zigbee gateways.

---

RGB + CCT Independent Control

Supports 6-wire RGBCCT LED strips, allowing independent adjustment of:

• Red
• Green
• Blue
• Cool White
• Warm White

Providing millions of color combinations and flexible white light adjustment.

---

APP & Voice Control

Compatible with:

• Tuya Smart APP
• Smart Life APP
• Alexa
• Google Home
• Echo Plus
• Matter-compatible gateways

Enabling convenient smart lighting management.

---

Wide Voltage Compatibility

Поддерживает:

• DC5V
• DC12V
• DC24V

Suitable for different RGBCCT LED strip applications.

---

High Output Capacity

Поддерживает:

• 6A per channel
• 15A maximum total output

Maximum power:

• DC5V: 75W
• DC12V: 180W
• DC24V: 360W

---

Compatible with Multiple RGBCCT LED Strips

Supports 6-wire PWM RGBCCT LED products:

• FCOB LED Strip
• COB LED Strip
• 5050 LED Strip
• 5630 LED Strip
• 5730 LED Strip
• 3528 LED Strip
• 2835 LED Strip
• 3014 LED Strip

(No IC chip required)

---

Zigbee Mesh Signal Transmission

Supports automatic signal transmission between controllers within 30 meters, allowing extended control distance through Zigbee networking.

---

Auto Synchronization Function

Multiple controllers can work synchronously under the same APP mode and speed settings, even when powered on at different times.

---

Smart Automation Functions

Поддерживает:

• Управление группой
• Device sharing
• Tap-to-run scenes
• Automation schedules
• Brightness adjustment
• Dual white adjustment
• Power-off memory function

---

Технические характеристики

---

Typical Applications

• Smart Home Lighting
• RGBCCT LED Strip Lighting
• Ceiling Cove Lighting
• Hotel Ambient Lighting
• Cabinet Lighting
• Commercial Interior Lighting
• Decorative Lighting
• Архитектурное освещение
• Intelligent Building Lighting
• Mood Lighting Systems
