Product Overview:
Versatile and Modular LED Pendant for Commercial Interiors
The Connectable Linear Pendant Light is a sleek and highly configurable LED fixture designed for modern workspaces, retail environments, and architectural lighting schemes. Available in 4FT and 8FT lengths, it supports Y, L, X, and T connectors, allowing designers to create seamless continuous lighting systems.
Featuring 3-wattage (20W/40W/60W/80W) and 3CCT (3000K/4000K/6500K) selectability in one fixture, it offers maximum flexibility with minimum inventory complexity. Compatible with a range of diffuser options including UGR<19 Grille and UGR<16 Honeycomb, this pendant balances visual comfort with performance.
Product Features:
-

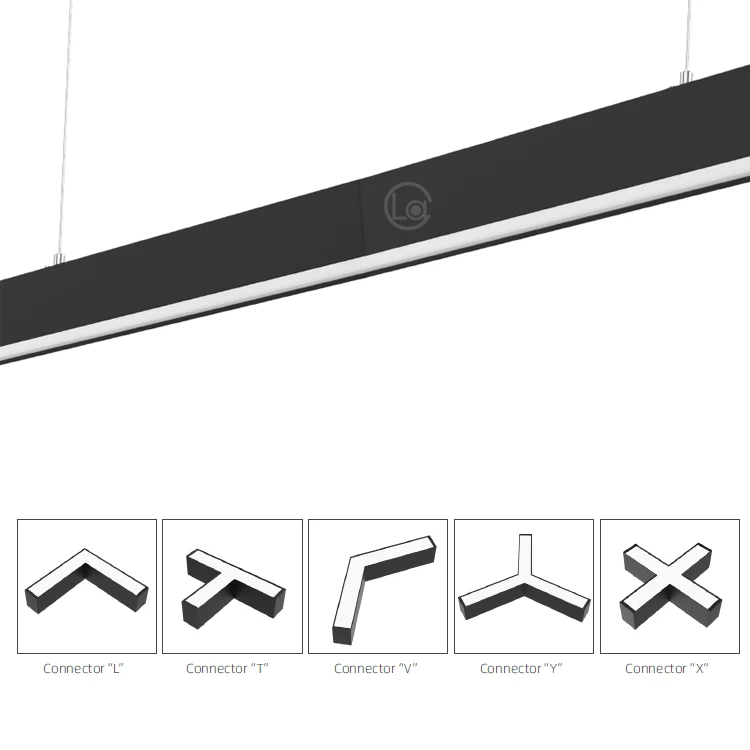

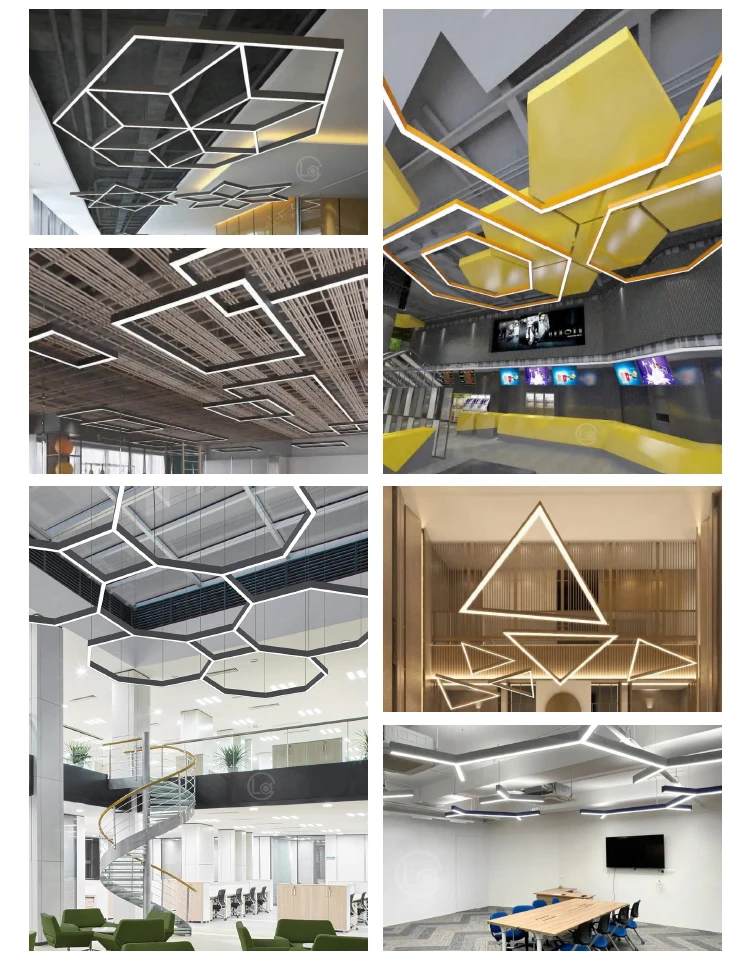

Connectable in Multiple Shapes: Easily link in Y, L, X, or T formations for creative lighting layouts.
-
Selectable Power & CCT: Adjust wattage and color temperature to fit different environments and energy needs.
-
High Lumen Efficiency: Up to 130lm/W output using quality Epistar LEDs.
-

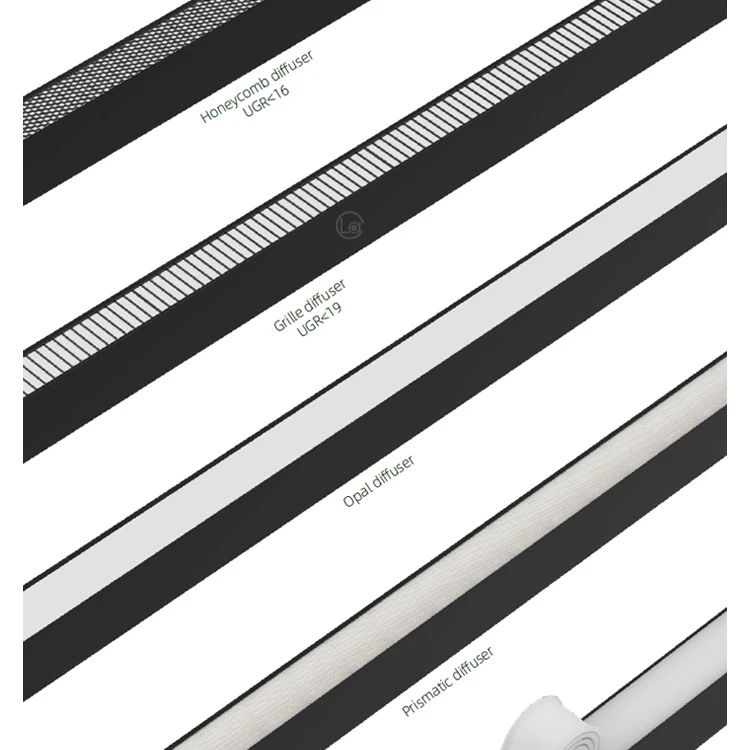

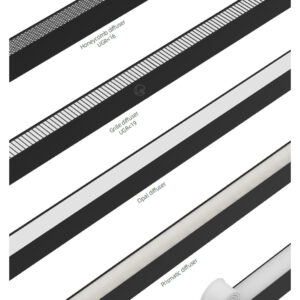

Low UGR Options: Grille diffuser (UGR<19) and Honeycomb (UGR<16) available for glare-free workspaces.
-
Durable Build: Aluminum housing with opal diffuser for even light distribution.
-

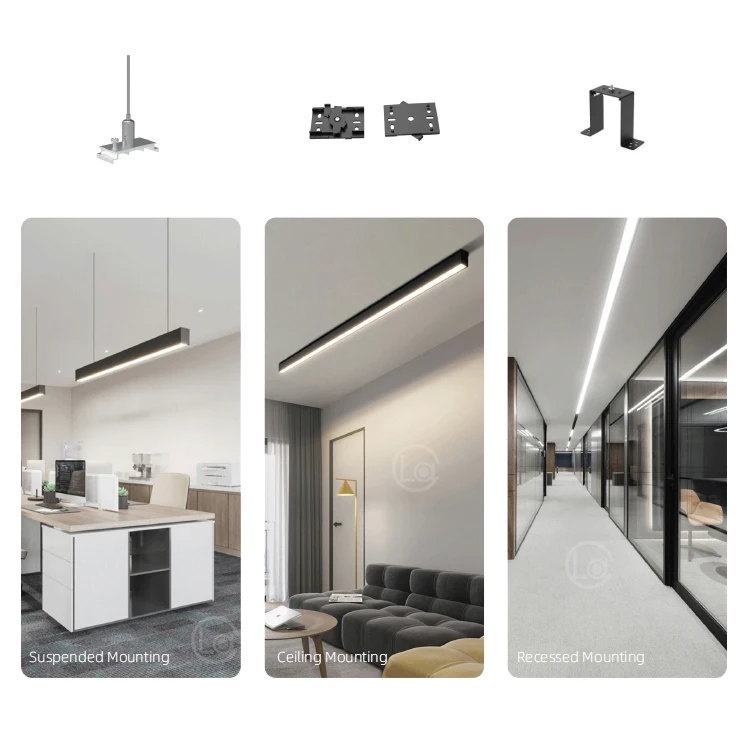

Plug-and-Play Installation: Designed for suspended, surface-mount, or continuous-run setups.
Technical Specifications:
| Parameter | Details |
|---|---|
| Power | 20W / 40W / 60W / 80W / 100W |
| Luminous Efficacy | 100 lm/W / 130 lm/W |
| CCT | 3000K / 4000K / 6500K |
| Beam Angle | 110° |
| Input Voltage | AC220-240V |
| LED Chip | Epistar |
| LED Driver | BOKE |
| Material | Aluminum + Opal Diffuser |
| Sizes (mm) | 570×50×70, 1130×50×70, 1410×50×70, 1690×50×70, 2250×50×70 |
| Diffuser Options | Opal (Standard), Prismatic (+$0.3), Grille UGR<19 (+$1.8), Honeycomb UGR<16 (+$1.2) |
| Shape Connection | Y / L / X / T |
| Surface Colours | White / Black / Custom RAL on request |
| Mounting Type | Suspended / Surface-Mount / Continuous Connection |
Lacelesty: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
