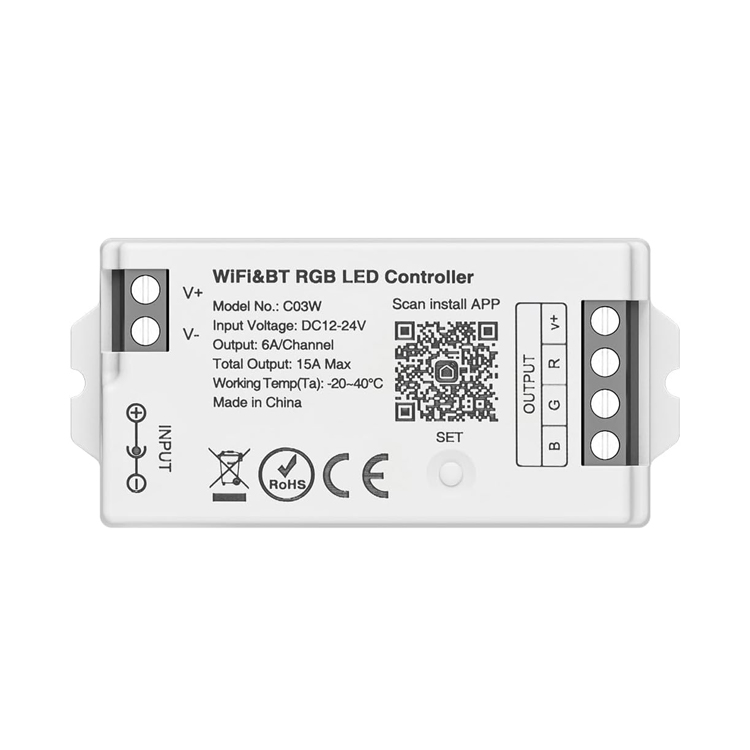

Product Overview
The WiFi & Bluetooth RGB LED Controller C03W is a smart wireless LED controller designed for controlling 4-wire PWM RGB LED strips with full-color lighting adjustment. Featuring a dual-module design with WiFi and Bluetooth technology, it provides flexible and reliable control through APP, RF remote, and voice assistants.
Compatible with Tuya Smart and Smart Life APP, the C03W supports 16 million RGB colors, brightness adjustment, saturation control, multi-zone management, automation scenes, timer settings, and smart home functions. It also works with Alexa and Google Home Assistant for convenient voice control.
Supporting DC12V–24V input voltage and up to 15A total output current, the C03W is compatible with various RGB LED strips including FCOB, COB, 5050, 5630, 5730, 3528, 2835, and other non-IC PWM LED strips.
Key Features
Three Control Methods
Supports three independent control methods:
1. 2.4GHz RF Remote Control
Compatible with:
- WR01RF
- RC03RFB
- RC04RFB
- RC05RFB
2. WiFi APP Control
Compatible with:
- Tuya Smart APP
- Smart Life APP
3. Voice Control
Supports:
- Alexa
- Google Home Assistant
Three control methods can be used simultaneously.
WiFi + Bluetooth Dual Module Design
Built-in WiFi and Bluetooth modules provide stable smart lighting control.
When the WiFi router disconnects, Bluetooth control automatically works as a backup control method.
16 Million RGB Colors
Supports full RGB color adjustment:
- Red
- Green
- Blue
Providing:
- 16 million color combinations
- Brightness adjustment
- Saturation adjustment
- Dynamic lighting effects
RGB LED Strip Control
Designed for:
4-wire PWM RGB LED strips
Connection:
- V+
- R
- G
- B
Compatible with:
- FCOB LED Strip
- COB LED Strip
- 3014 LED Strip
- 2835 LED Strip
- 3528 LED Strip
- 5050 LED Strip
- 5630 LED Strip
- 5730 LED Strip
(No IC chip required)
Smart APP Functions
Supports:
- RGB color adjustment
- Brightness adjustment
- Saturation adjustment
- Group control
- Multi-zone control
- Voice command
- Timer setting
- Countdown ON/OFF
- Biorhythm lighting
- Tap-to-run scenes
- Automation
- Scene customization
- Sleep/wakeup plan
- Do Not Disturb mode
- Device sharing
High Output Capacity
Supports:
- 6A per channel
- 15A maximum total output
Maximum power:
- DC12V: 180W
- DC24V: 360W
RF Signal Transmission Function
Supports RF remote signal transmission between controllers.
One controller can transmit RF signals to another controller within:
30 meters
Multiple controllers in the same group can extend the remote control distance.
Auto Synchronization Function
Multiple controllers can operate synchronously under the same RF remote control mode and speed settings, even when powered on at different times.
Specifications
| Item | Specification |
|---|---|
| Product Model | C03W |
| Product Name | WiFi & Bluetooth RGB LED Controller |
| LED Type | PWM RGB LED Strip |
| Input Voltage | DC12V–24V |
| Output Voltage | Same as Input Voltage |
| Output Current | 6A/Channel |
| Maximum Output | 15A |
| Output Power | DC12V 180W / DC24V 360W |
| WiFi Standard | IEEE 802.11 b/g/n 2.4GHz |
| Bluetooth | Supported |
| RF Remote Compatibility | WR01RF / RC03RFB / RC04RFB / RC05RFB |
| RF Control Distance | 30m (99ft) |
| APP Support | Tuya Smart / Smart Life |
| Voice Control | Alexa / Google Home |
| LED Connection | V+ / R / G / B |
| Working Temperature | -10℃ ~ 40℃ |
Typical Applications
- Smart RGB Home Lighting
- RGB LED Strip Lighting
- Ceiling Cove Lighting
- Bedroom Ambient Lighting
- Hotel Decorative Lighting
- Commercial Interior Lighting
- Entertainment Lighting
- Architectural Lighting
- Smart Home Projects
