Product Overview

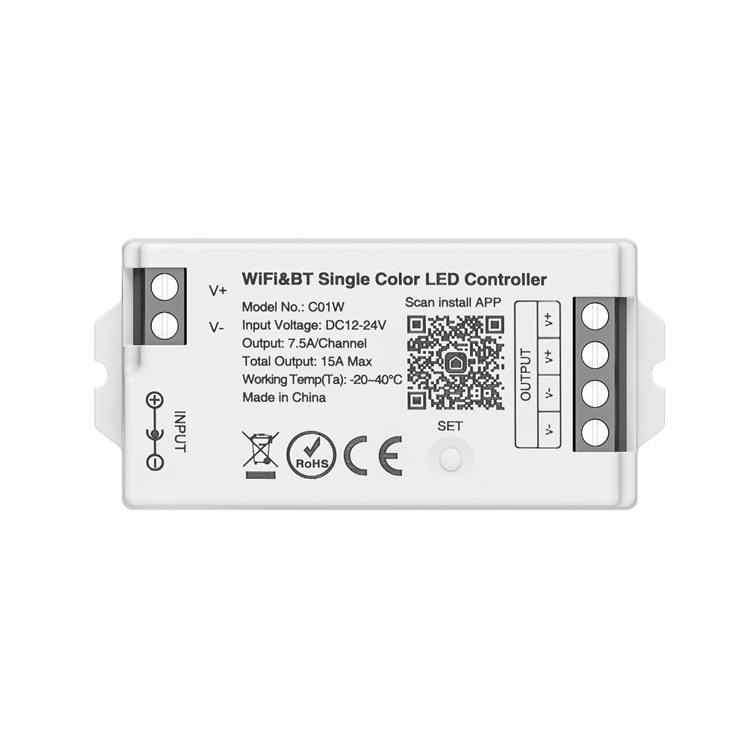

The WiFi & Bluetooth Single Color LED Controller C01W is a smart wireless LED dimming controller designed for controlling 2-wire monochrome LED strips through WiFi, Bluetooth, APP, and RF remote control. With a dual-module design combining WiFi and Bluetooth technology, it provides flexible and reliable smart lighting control even when the WiFi network is disconnected.

Compatible with Tuya Smart and Smart Life APP, the C01W supports remote control, voice commands, automation schedules, scene customization, and multi-zone lighting management. It also works with Alexa and Google Home for convenient smart home integration.

Supporting DC12V–24V input voltage and up to 15A total output current, the controller is suitable for various single-color PWM LED strips including FCOB, COB, 5050, 5630, 5730, 3528, 2835, and other non-IC LED strips.

Key Features

Three Control Methods

Supports three flexible control options:

1. 2.4GHz RF Remote Control
   • Compatible with WR02RF and RC01RFB remote controls
2. WiFi APP Control
   • Tuya Smart APP
   • Smart Life APP
3. Voice Control
   • Alexa
   • Google Home Assistant

All three control methods can work simultaneously.

WiFi + Bluetooth Dual Module Design

Built-in WiFi and Bluetooth modules provide stable smart control.

When the WiFi router is disconnected, Bluetooth control works as a backup method to maintain lighting operation.

Single Color LED Strip Control

Designed for:

• Monochrome LED Strip
• 2-wire PWM LED Strip

Connection:

• V+
• V-

Compatible with:

• FCOB LED Strip
• COB LED Strip
• 3014 LED Strip
• 2835 LED Strip
• 3528 LED Strip
• 5050 LED Strip
• 5630 LED Strip
• 5730 LED Strip

(No IC chip required)

Smart APP Functions

Supports:

• Brightness adjustment
• Group control
• Multi-zone control
• Voice command
• Timer setting
• Countdown ON/OFF
• Biorhythm lighting
• Tap-to-run scenes
• Automation
• Custom scenes
• Sleep/wakeup schedule
• Do Not Disturb mode
• Device sharing

High Output Capacity

Supports:

• 7.5A per channel
• 15A maximum total output

Maximum power:

• DC12V: 180W
• DC24V: 360W

RF Signal Transmission Function

Supports RF remote signal transmission between controllers.

One controller can transmit RF signals to another controller within:

30 meters

Multiple controllers can extend the remote control distance when installed within range.

Auto Synchronization Function

Multiple controllers can operate synchronously with the same RF remote control settings, even when powered on at different times.

Specifications

Typical Applications

• Smart Home Lighting
• Single Color LED Strip Lighting
• Cabinet Lighting
• Ceiling Cove Lighting
• Bedroom Ambient Lighting
• Hotel Lighting Systems
• Commercial Interior Lighting
• Decorative Lighting
• Intelligent Lighting Projects
