Product Overview

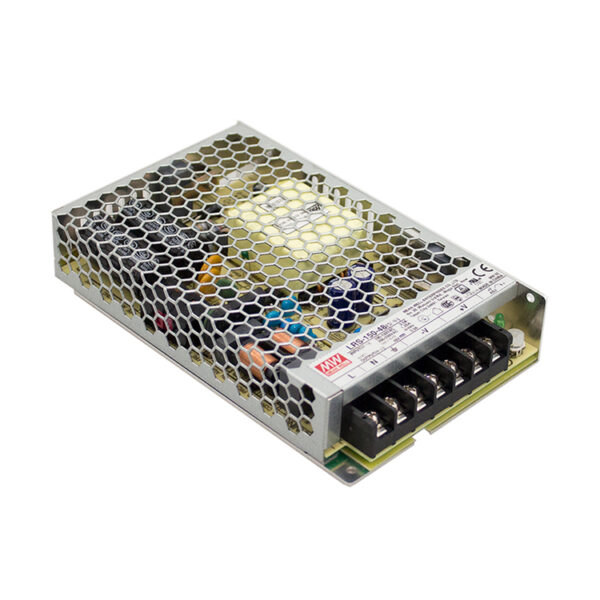

The Mean Well LRS Series LED Drivers are cost-effective AC-DC power supplies designed for industrial automation, LED lighting, electronic equipment, communication systems, and control applications. Available in power ratings from 35W to 1200W, the LRS Series combines high reliability with an ultra-compact 1U low-profile design, making it ideal for installations where space is limited.
Featuring 300VAC surge immunity, low no-load power consumption, operation up to 70°C, and an installation altitude of up to 5,000 meters, the LRS Series delivers dependable performance in demanding environments. With comprehensive international safety certifications, it provides an economical and trusted power solution for a wide range of commercial and industrial applications.
Key Features
Wide Power Range
Available in output power ratings from 35W to 1200W, suitable for diverse industrial and commercial power requirements.
Cost-Effective Solution
One of Mean Well’s most economical AC-DC power supply series, offering excellent value without compromising reliability.
Ultra-Slim 1U Design
Compact low-profile housing simplifies installation in space-constrained control cabinets and equipment.
High Surge Immunity
Designed to withstand 300VAC input surge, providing stable operation in unstable power environments.
Low No-Load Power Consumption
Consumes only 0.2W–0.75W under no-load conditions, helping reduce standby energy consumption.
Reliable Industrial Performance
Supports 5G vibration resistance, continuous operation at 70°C, and installation at altitudes up to 5,000 meters.
Comprehensive Safety Certifications
Certified to:
- IEC/EN 60335-1 (PD3)
- IEC/EN 61558-1
- IEC/EN 61558-2-16
- IEC/EN/UL 62368-1
- GB4943
Ensuring compliance with global industrial safety standards.
Specifications
| Item | Specification |
|---|---|
| Product Series | Mean Well LRS Series |
| Power Range | 35W–1200W |
| Input Surge Capability | 300VAC |
| Housing | Metal Enclosure |
| Form Factor | Ultra Slim 1U Low Profile |
| No-Load Power Consumption | 0.2W–0.75W |
| Operating Temperature | Up to 70°C |
| Vibration Resistance | 5G |
| Maximum Operating Altitude | 5,000m |
| Safety Standards | IEC/EN60335-1 (PD3), IEC/EN61558-1/-2-16, IEC/EN/UL62368-1, GB4943 |
| Applications | Industrial Equipment, LED Lighting, Automation, Control Systems |
Typical Applications
- LED Lighting Systems
- Industrial Automation Equipment
- Control Cabinets
- Factory Automation
- Electronic Instruments
- Communication Equipment
- Security Systems
- Smart Control Systems
- Industrial Machinery
- Commercial Electrical Equipment
