Product Description

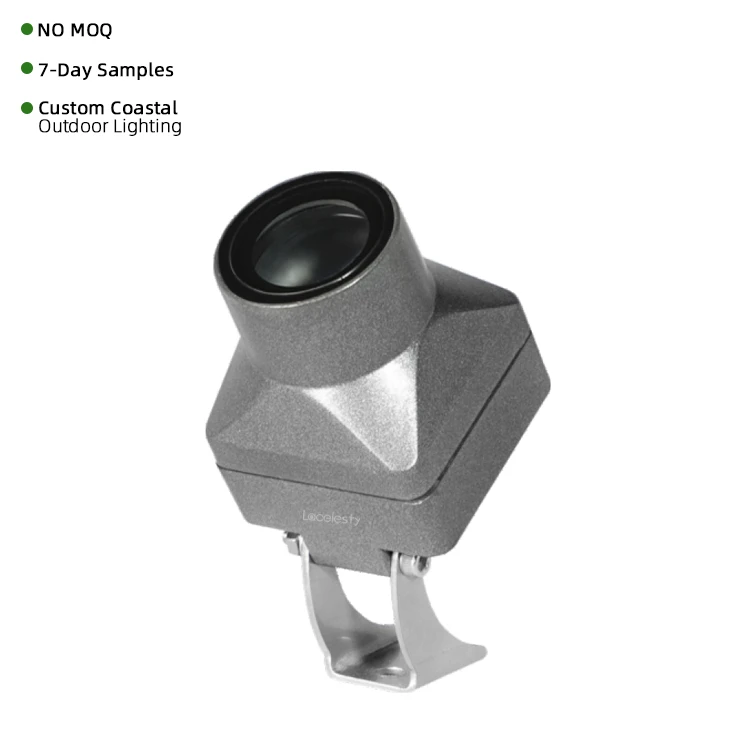

The Narrow Spaces Building Spotlight is a compact 3W architectural LED fixture engineered for façade illumination in tight or restricted installation areas. With its robust one-piece die-cast aluminum body, sealed flat glass design, and high-performance optical system, this fixture delivers precise, controlled lighting for historical buildings, corridors, columns, niches, and narrow architectural lines.
Designed with multiple lens options, efficient heat dissipation, and adjustable aiming, it offers both stability and flexibility for professional outdoor lighting applications. Optional RGBW and DMX512 control make it suitable for dynamic and creative lighting effects.
Product Features
Compact Die-Cast Housing
-
One-piece ADC12 aluminum body for durability.
-
Flat tempered glass front sealed for waterproof and dustproof protection.
-
Miniature size ideal for tight installation spaces.
Multiple Lens Options
-
Available in various lens diameters for tailored beam control.
-
Ultra-narrow beam options suitable for precise architectural highlighting.
Efficient Heat Dissipation
-
Integrated conduction + convection cooling structure.
-
Rapid heat transfer reduces LED temperature and improves longevity.
-
Built-in constant current driver for stable performance.
Adjustable Angle
-
Manual vertical adjustment 0–90° for accurate targeting.
-
Ensures flexible positioning on facades and narrow architectural surfaces.
Easy Installation & Control
-
Sturdy U-bracket for quick mounting.
-
Supports ON/OFF constant current driver (optional).
-
Optional RGBW DMX512 for dynamic color control.
Applications
-
Historical building facades
-
Narrow architectural lines
-
Columns, niches, corridor walls
-
Precise accent lighting in limited-space areas
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | LED Flood Light / Mini Spotlight |
| Power | 3W |
| Lumen Output | — (customizable based on CCT) |
| CCT Options | 3000K / 4000K / 6000K (Options: R / G / B / RGBW DMX512) |
| Beam Angle | 2.5° / 15° / 25° / 30° / 45° / 60° |
| IP Rating | IP65 |
| Input Voltage | DC24V |
| LED Chip | 1 × CREE LED |
| LED Driver | N/A (optional external constant current driver) |

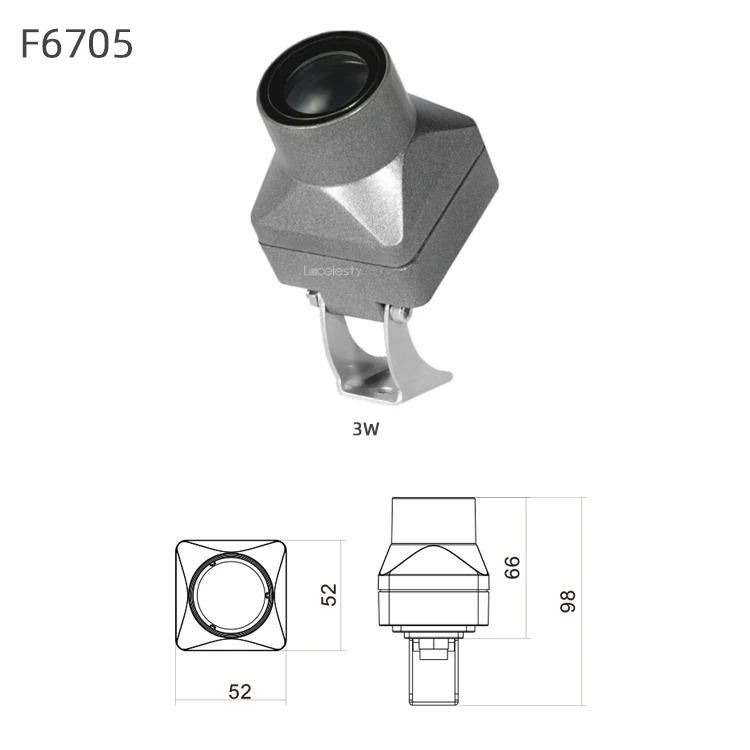

| Size | 52 × 52 × 98 mm |
| Material | Die-cast Aluminum |
| Surface Colours | Black / White / Dark Grey / Light Grey |
Why Choose Us
● Samples:7-10 days Production: 20-30 days
● Custom Colors & Sizes
● Lighting Design Service
● One-Stop Sourcing
FAQ
Lacelesty: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
