Product Features
-
Premium Die-Cast Housing
Made of ADC12 aluminum with a waterproof breather plug to balance internal pressure and prevent condensation, ensuring long-term outdoor durability. -
Anti-Glare Optical Design
Integrated glare shield with optional anti-glare accessories for comfortable, controlled lighting output. -
Slim Heat Dissipation Structure
Thin, smooth housing design maximizes heat transfer through the outer wall, effectively lowering LED temperature and extending lifespan. -
Material Optimization for Performance
Combines high-conductivity pure aluminum with die-cast aluminum to achieve compact size and high-power efficiency. -
Flexible XY-Axis Adjustment
Allows manual 0–90° tilt in all directions for precise beam aiming and coverage control. -
Easy Installation & Smart Control
Equipped with a curved back bracket for quick mounting; supports DMX512 (1990) protocol and ON/OFF control options for dynamic lighting effects. -
Wide Application Range
Perfect for parks, plazas, bridges, landmarks, building facades, scenic roads, and architectural accent lighting.
Technical Specifications
| Parameter | Specification |
|---|---|

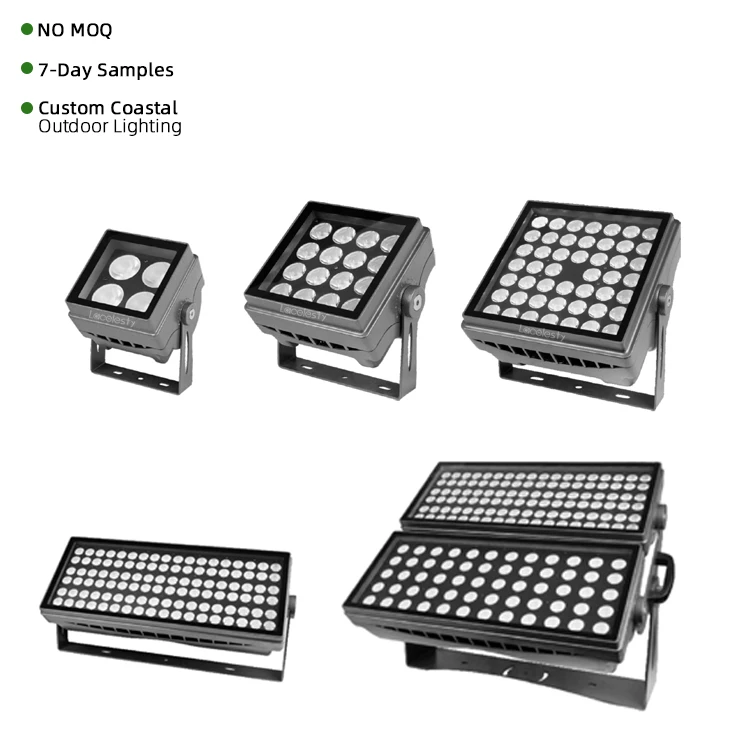

| Product Name | Outdoor Facade Floodlights |

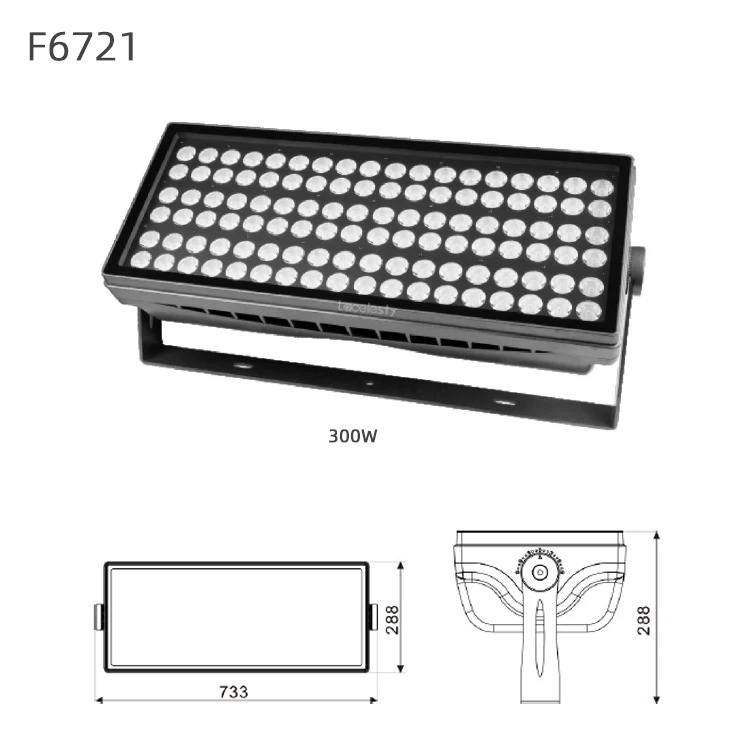

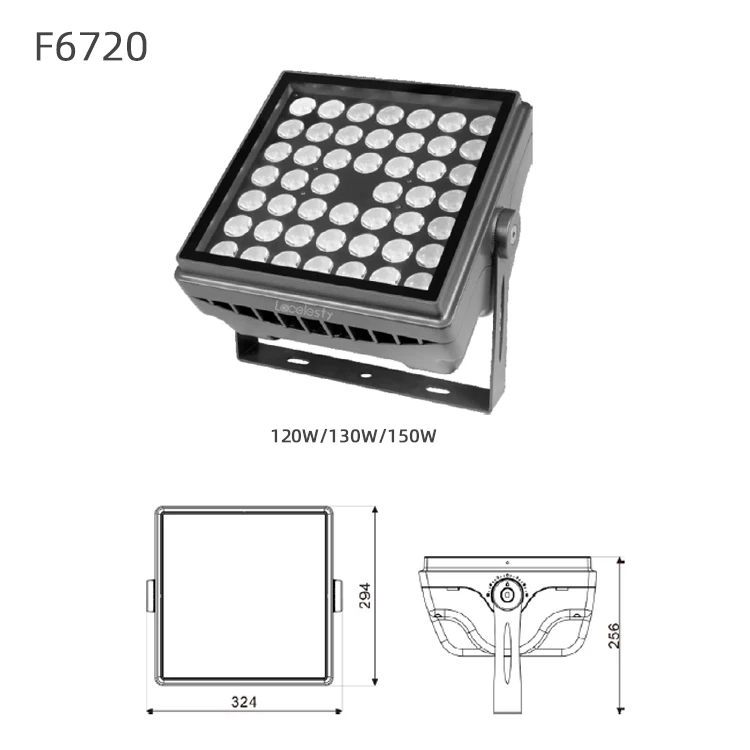

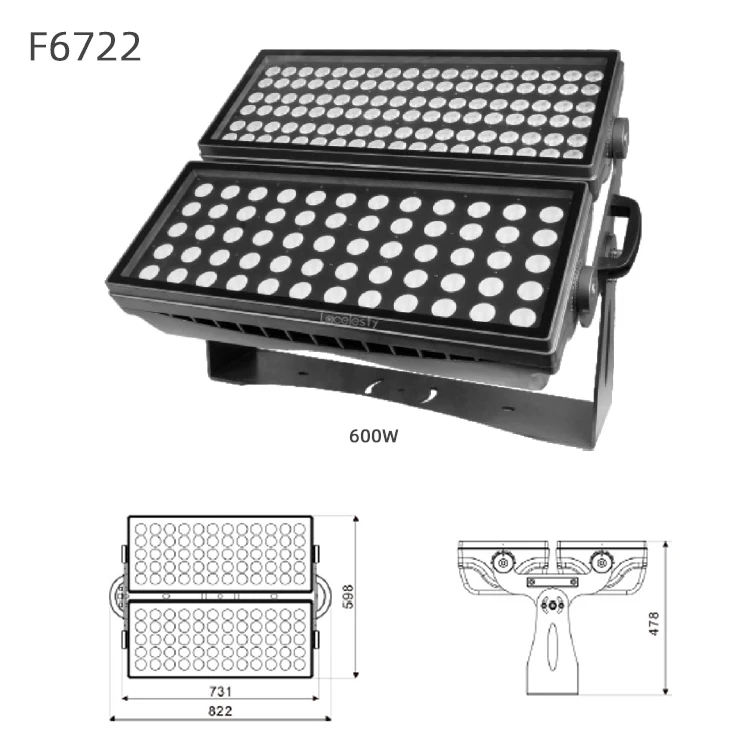

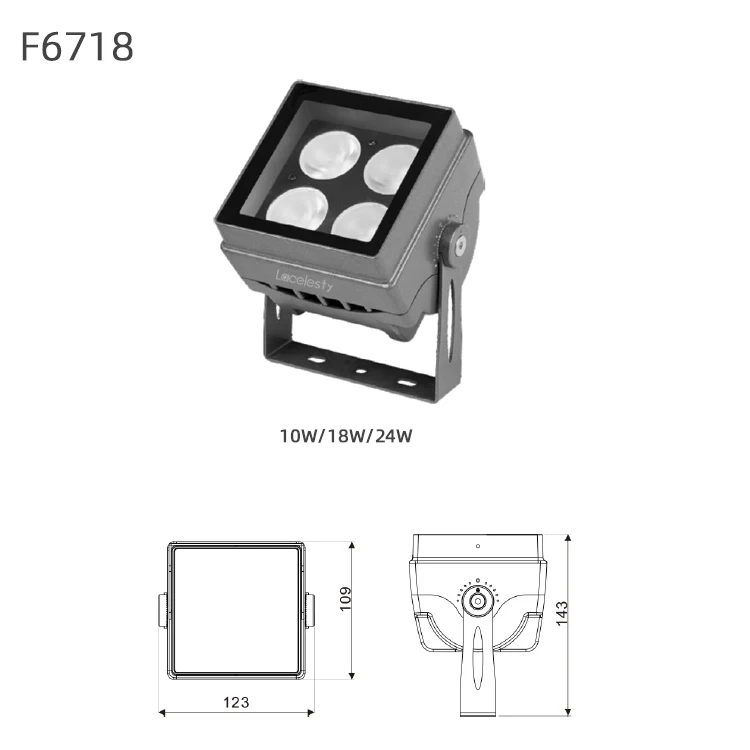

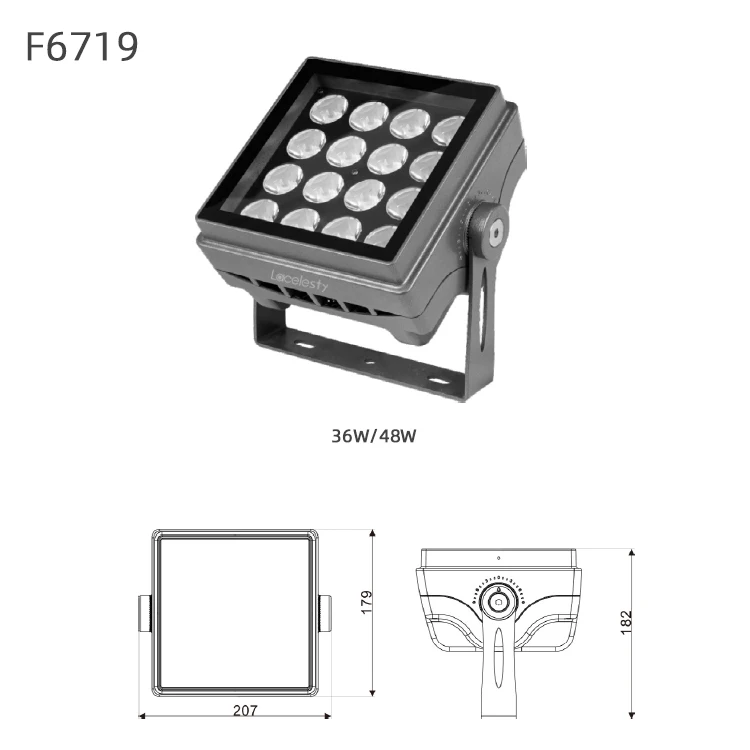

| Item No. | F6718 / F6719 / F6720 / F6721 / F6722 |
| Power Options | 10W / 18W / 24W / 36W / 48W / 60W / 120W / 150W / 300W / 600W |
| Luminous Efficacy | 100 lm/W (3000K) |
| CCT Options | 3000K / 4000K / 6000K / R / G / B / RGBW DMX512 |
| Beam Angle | 2.5° / 15° / 25° / 30° / 45° / 60° |
| CRI | ＞80 |
| Input Voltage | DC24V / AC220–240V |
| IP Rating | IP65 |
| Material | High Conductivity Pure Aluminum + Die-Cast Aluminum |
| Mounting Bracket | Curved back-mounted adjustable bracket |
| Control Options | DMX512 (1990) / ON-OFF |
| Surface Colour | Black / Dark Grey / Light Grey (customizable) |
Why Choose Us
● Samples:7-10 days Production: 20-30 days
● Custom Colors & Sizes
● Lighting Design Service
● One-Stop Sourcing
FAQ
Lacelesty: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
