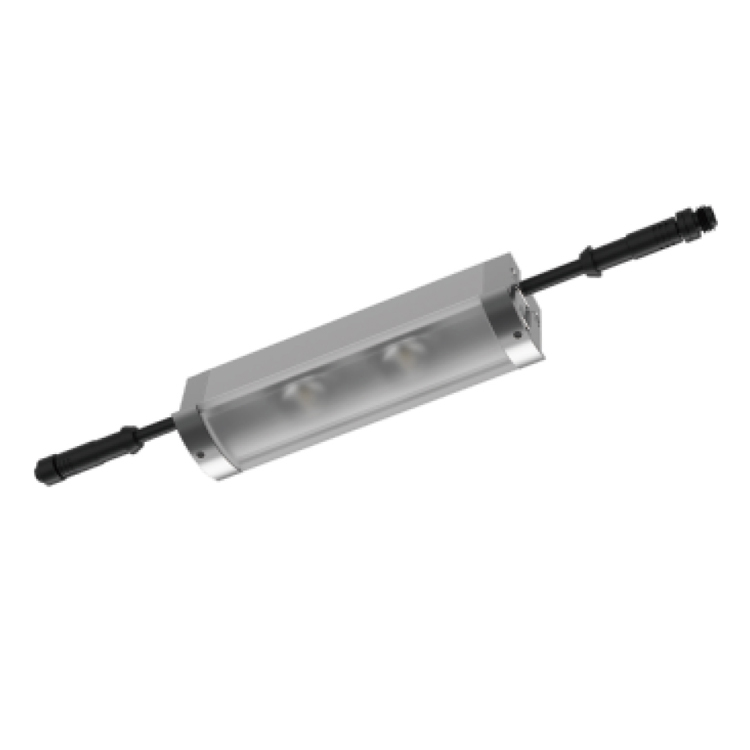

Product Overview
The Linear Handrail Lighting System is a compact and high-performance LED luminaire engineered for discreet installation within round stainless steel or aluminum handrails. Designed to provide continuous, glare-free illumination beneath the railing, it enhances both safety and aesthetics in architectural and landscape applications.
With its slim profile and integrated design, the fixture blends seamlessly into handrail structures while delivering uniform illumination along walkways, staircases, bridges, balconies, terraces, and public spaces. Available with either symmetrical or asymmetrical light distribution, it allows lighting designers to achieve precise illumination according to project requirements.
Constructed from durable aluminum and equipped with premium CREE LEDs, the system provides reliable long-term performance in both indoor and outdoor environments.
Product Features
Integrated Handrail Lighting Design
- Designed for concealed installation inside round handrails
- Creates continuous linear illumination
- Maintains a clean and modern architectural appearance

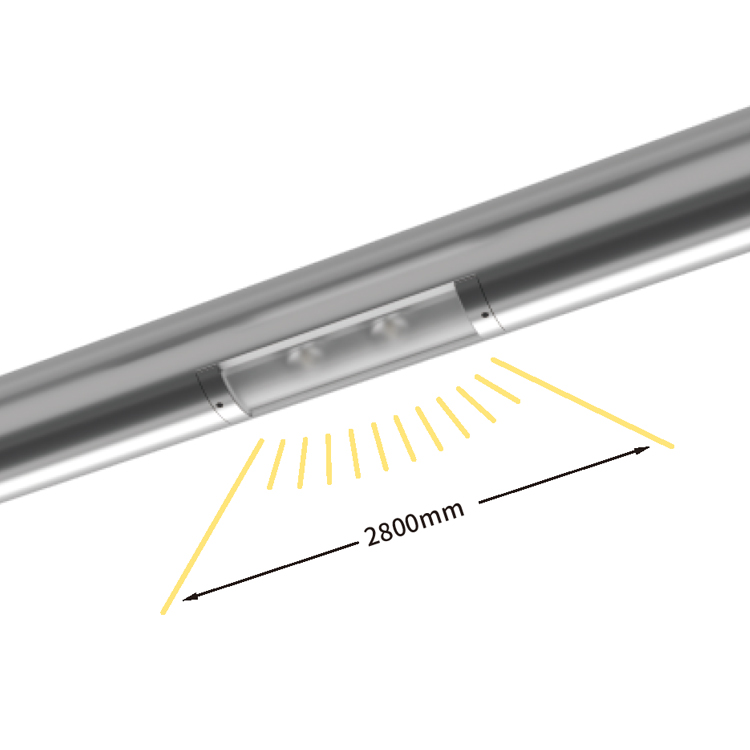

Symmetrical & Asymmetrical Optics
- Symmetrical beam: 90° × 135°
- Asymmetrical beam: 65° × 125°
- Optimized light distribution for various applications
Glare-Free Illumination
- Soft and comfortable lighting effect
- Improves visual comfort and safety
- Ideal for pedestrian pathways and public areas
Premium CREE LED Technology
- High-performance LED light source
- Stable lumen output and excellent reliability
- Energy-efficient operation
Durable Aluminum Construction
- Corrosion-resistant aluminum housing
- Suitable for indoor and outdoor installations
- Long-term durability in demanding environments
Easy Installation & Maintenance
- Special curved front design for convenient installation
- Suitable for round handrails with minimal modification
- Simplified maintenance and replacement
Weather-Resistant Performance
- Suitable for architectural exterior applications
- Designed to withstand challenging environmental conditions

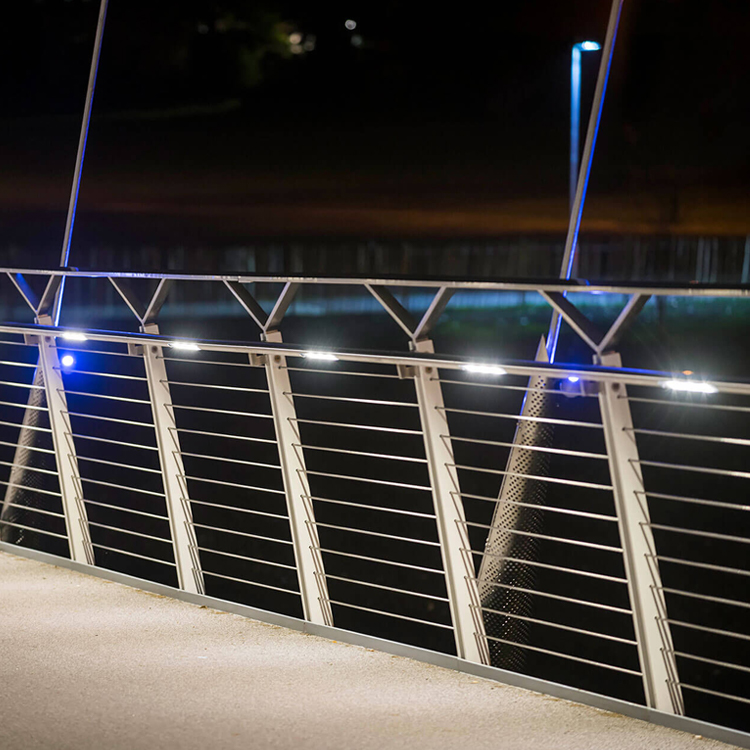

Applications
- Handrails and guardrails
- Staircase lighting
- Landscape pathways
- Public parks
- Bridges and boardwalks
- Villas and residential projects
- Commercial buildings
- Outdoor plazas and public spaces
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Linear Handrail Lighting System |
| Power | 5W |
| CCT | 3000K (Optional 2700K–6500K) |
| Beam Angle | 90° × 135° (Symmetrical) / 65° × 125° (Asymmetrical) |
| Input Voltage | DC12V |
| LED Chip | CREE |
| IP Rating | IP65 |
| Material | Aluminum |

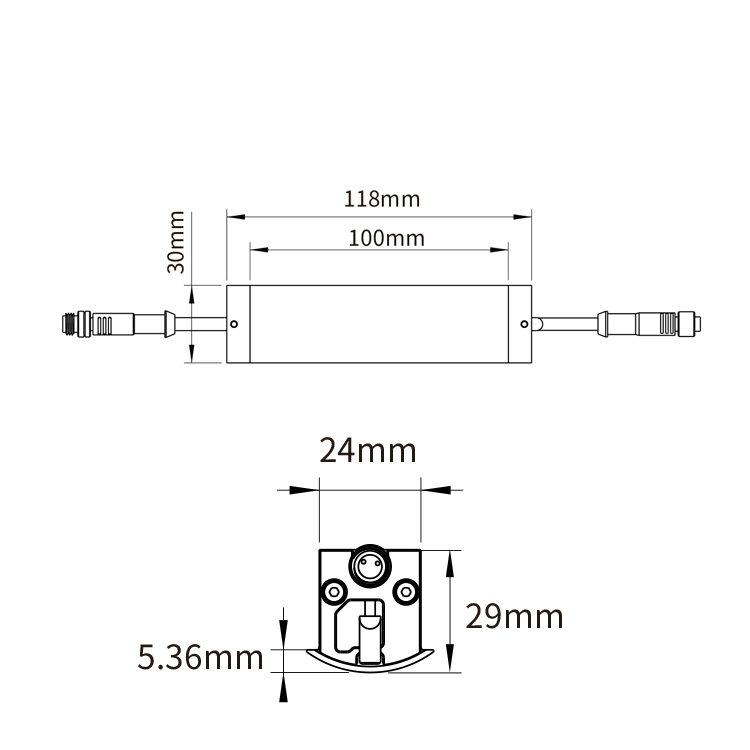

| Size | Ø30 × H118 mm |
| Surface Colour | Silver |
| Suitable Handrail Diameter | Ø48–52 mm |
| Suitable Wall Thickness | 1–2 mm |
| Installation | Recessed into Handrail |
| Application | Handrails, Walkways, Bridges & Architectural Projects |
Why Choose This Linear Handrail Lighting System?
- Seamlessly integrates into round handrails
- Continuous, glare-free architectural lighting
- Choice of symmetrical or asymmetrical optics
- Premium CREE LED performance
- Durable aluminum construction
- Suitable for indoor and outdoor applications
- Enhances safety and architectural aesthetics simultaneously
The Linear Handrail Lighting System is an ideal solution for architects, lighting designers, and landscape professionals seeking elegant, low-profile illumination for railings, pathways, bridges, and public spaces while maintaining a clean and sophisticated architectural appearance.
