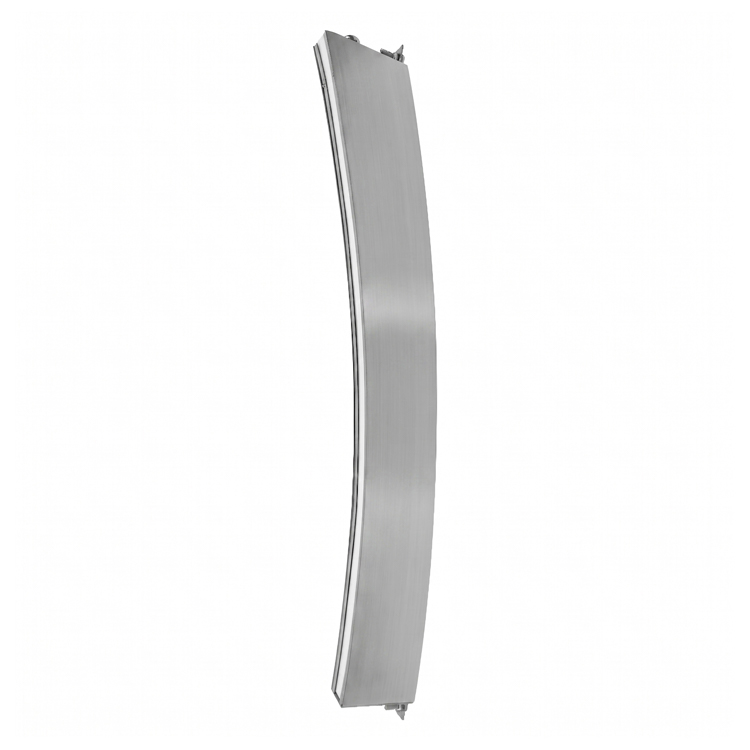

Product Overview
The Stainless Steel Bridge Railing Light is a specially designed curved LED handrail luminaire engineered for bridge guardrails, curved railings, boardwalks, and architectural landscape projects. Its elegant curved profile follows the natural contours of railing systems, creating seamless and continuous illumination while maintaining a clean architectural appearance.
Manufactured from marine-grade 316 stainless steel and paired with a high-transmittance PMMA diffuser, the fixture delivers exceptional durability and corrosion resistance, making it ideal for outdoor environments, including coastal and waterfront installations.
The wide 120° beam angle provides uniform lighting distribution along pathways and bridge structures, improving safety, visibility, and aesthetic appeal during nighttime operation.
Product Features
Curved Handrail Lighting Design
- Designed specifically for curved bridge and railing structures
- Integrates smoothly into architectural handrail systems
- Creates continuous and elegant lighting effects
Marine-Grade 316 Stainless Steel Housing
- Superior resistance to corrosion and rust
- Suitable for coastal, marine, and humid environments
- Long-lasting outdoor performance
Uniform Wide-Angle Illumination
- 120° beam angle for broad light coverage
- Reduces dark areas along walkways and bridges
- Enhances pedestrian safety and comfort
Premium PMMA Diffuser
- High light transmission efficiency
- Soft and evenly distributed illumination
- Minimizes glare and visual discomfort
Energy-Efficient LED System
- Low power consumption at 7W
- Reliable and stable light output
- Suitable for continuous operation in public spaces
Safe Low-Voltage Operation
- DC24V input voltage
- Increased electrical safety
- Easy integration into landscape lighting systems
Outdoor Weather Resistance
- IP65-rated protection
- Resistant to rain, dust, and environmental exposure
- Suitable for year-round outdoor installations

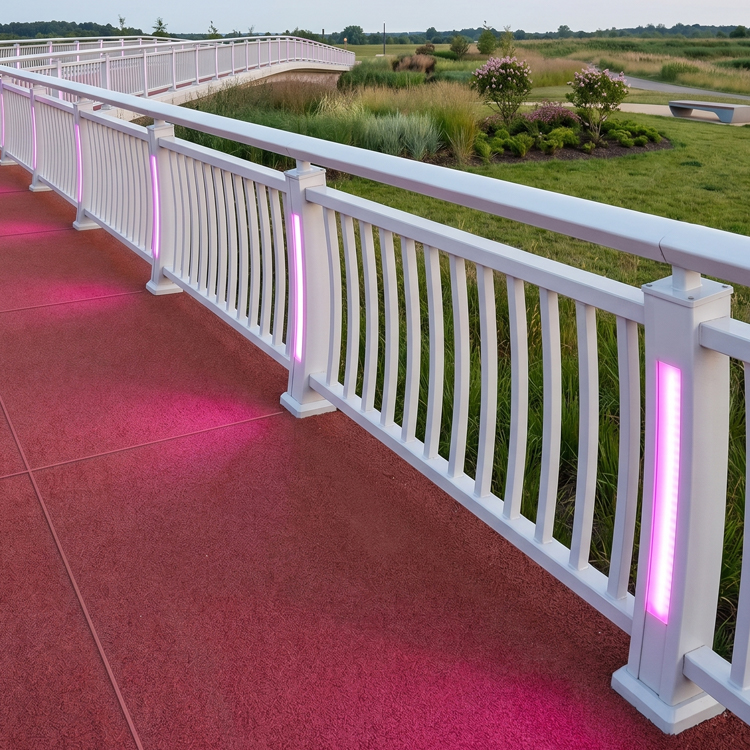

Applications
- Bridge railings
- Curved guardrail systems
- Pedestrian bridges
- Waterfront promenades
- Boardwalks
- Public parks
- Commercial landscape projects
- Architectural handrail lighting
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Stainless Steel Bridge Railing Light |
| Type | LED Handrail Light – Curved |
| Power | 7W |
| CCT | 3000K |
| Beam Angle | 120° |
| IP Rating | IP65 |
| Input Voltage | DC24V |
| LED Chip | SANAN |
| Material | Stainless Steel 316 + PMMA |

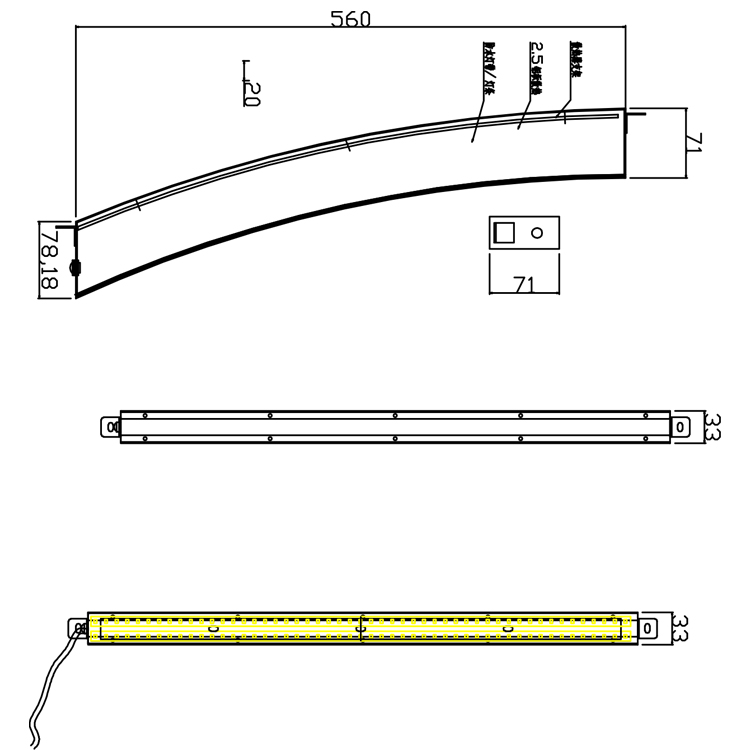

| Size | L560 × W33 × H71 mm |
| Surface Colour | Grey |
| Installation | Curved Handrail / Railing Mounted |
| Application | Bridges, Walkways & Architectural Railings |
Why Choose This Stainless Steel Bridge Railing Light?
- Specially designed for curved railing applications
- Marine-grade 316 stainless steel for maximum durability
- Wide-angle illumination for improved safety and visibility
- Low-voltage DC24V operation
- Weather-resistant IP65 protection
- Elegant architectural appearance
- Ideal for bridge, waterfront, and landscape lighting projects
The Stainless Steel Bridge Railing Light offers the perfect combination of architectural aesthetics, reliable performance, and long-term durability, making it an excellent solution for illuminating curved bridge railings, pedestrian pathways, waterfront developments, and modern outdoor infrastructure projects.
