Product Overview:
Smart Motion-Activated Recessed Step Lighting for Modern Spaces
The IP65 Recessed LED Step Light combines intelligent motion detection with energy-saving LED performance in a sleek, minimalist design. With only 3W power consumption, it’s ideal for enhancing visibility and safety in stairways, walkways, and corridors without increasing your energy bills.

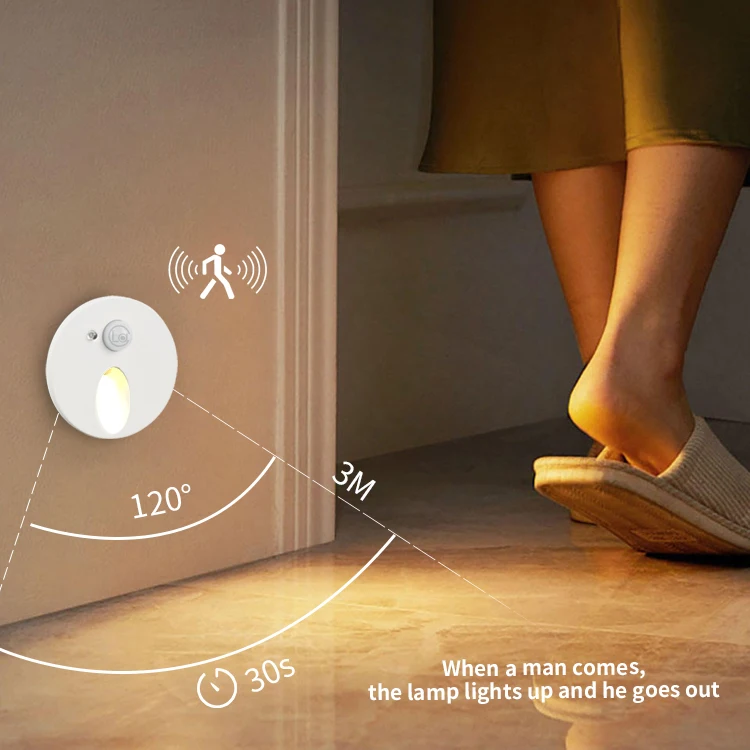

Equipped with an infrared body induction sensor, this light automatically switches on when someone approaches and turns off after departure, offering both convenience and security. Designed for recessed installation, it fits seamlessly into walls or steps, adding a touch of elegance without visible bulk.
The light is crafted from die-cast aluminum, finished in Matte Black, White, or Grey, and IP65 rated for outdoor durability in all weather conditions.
Key Features:
-
Infrared Motion Sensor: Automatically lights up when motion is detected, enhancing safety and energy efficiency.
-
Recessed Installation: Clean, flush finish for modern architectural aesthetics.
-
Waterproof & Durable: IP65 protection ensures resistance to rain, dust, and impact.
-
Energy Efficient: 3W low power usage with long LED lifespan.
-

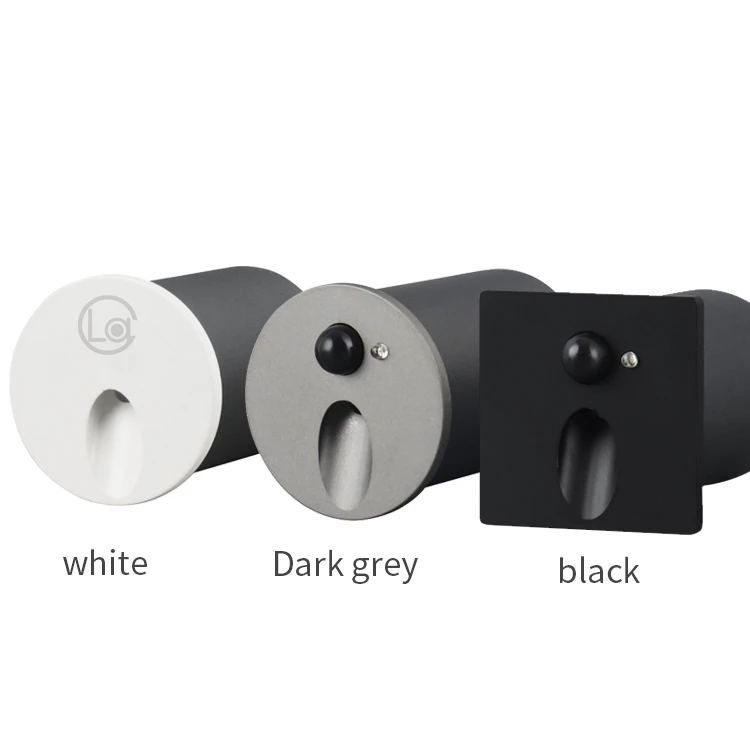

Elegant Surface Options: Available in Matte Black, Matte White, and Matte Grey.
Technical Specifications:
| Parameter | Details |
|---|---|
| Power | 3W |
| Lumens | 20lm/W |
| CCT | 3000K / 4000K / 6000K |
| Beam Angle | 40° |
| Input Voltage | AC100-240V |
| IP Grade | IP65 |
| LED Chip | Bridgelux |
| LED Driver | Own Brand |
| Size | (Contact us for detailed drawing) |
| Material | Die-cast Aluminum |
| Surface Colour | Matte Black / Matte White / Matte Grey |
| Sensor Type | Infrared Body Induction |
| Application | Staircases, Pathways, Step Walls, Outdoor/Indoor Walls |




ST2181R / ST2183R
Lumens:20lm/W
Beam Angle:40°
Size mm:Ø45*60mm / Ø65*60mm

ST2181R-Sensor / ST2183R-Sensor
Power:3W
Size mm:Ø45*60mm / Ø65*60mm
Cut Size:Ø40*60mm / Ø55*60mm

ST2182S
Power:3W

ST2182S-Sensor

ST2185S
Power:3W

ST2185S-Sensor
Power:3W

ST2186
Power:3W
Lumens:15lm/W Beam Angle:15°Size mm:40*185*44mm

ST2186-Sensor
Power:3W
Lumens:15lm/W Beam Angle:15°Size mm:40*185*44mm
Lacelesty: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
