Product Overview

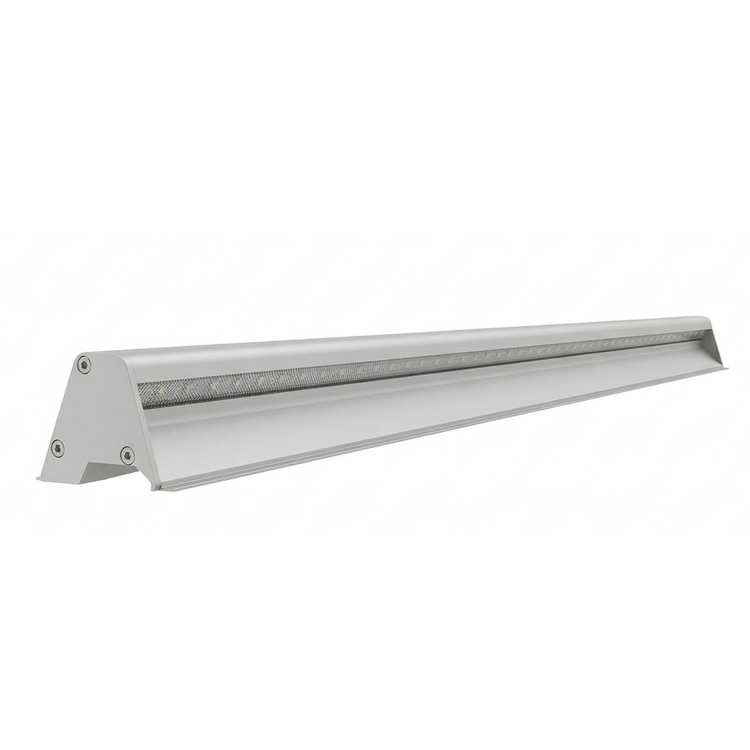

The Surface Mounted Linear Ground Light is a durable architectural luminaire engineered to provide elegant grazing illumination for outdoor pathways and landscape environments. Its low-profile surface-mounted design allows for easy installation without recessed mounting while maintaining a clean and modern appearance.
Designed with an internally angled LED light source, the fixture projects light precisely across walking surfaces, delivering uniform illumination while minimizing glare. The smooth housing with rounded edges improves pedestrian safety, making it ideal for both public spaces and private landscapes.
Its modular construction also supports continuous linear installations, enabling architects and lighting designers to create uninterrupted lighting effects for large-scale landscape and architectural projects.
Product Features
Surface Mounted Installation
- No recessed housing required.
- Fast and convenient installation.
- Ideal for retrofit and new construction projects.
Robust Low-Profile Design
- Durable aluminum housing with tempered glass.
- Rounded edge design improves pedestrian safety.
- Suitable for high-traffic outdoor environments.
Optimized Grazing Illumination
- Integrated angled LED source provides efficient light distribution.
- Produces smooth, uniform pathway illumination.
- Reduces glare while enhancing visual comfort.
Modular Continuous Installation
- Supports seamless end-to-end installation.
- Creates continuous linear lighting effects.
- Perfect for large landscape and architectural applications.
Reliable Outdoor Performance
- IP66 waterproof protection.
- Resistant to rain, dust, and harsh weather.
- Built for long-term exterior operation.
Premium LED Technology
- High-efficiency OSRAM LEDs.
- Excellent luminous performance.
- Long service life with low maintenance.
Applications
- Pedestrian pathways
- Landscape walkways
- Public plazas
- Parks and gardens
- Commercial developments
- Building perimeters
- Courtyards
- Urban landscape projects
- Architectural accent lighting
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | LED Inground Light |
| Power | 24W |
| Luminous Efficiency | 100 lm/W |
| CCT | 3000K |
| Beam Angle | 30° |
| IP Rating | IP66 |
| Input Voltage | DC24V |
| LED Chip | OSRAM |

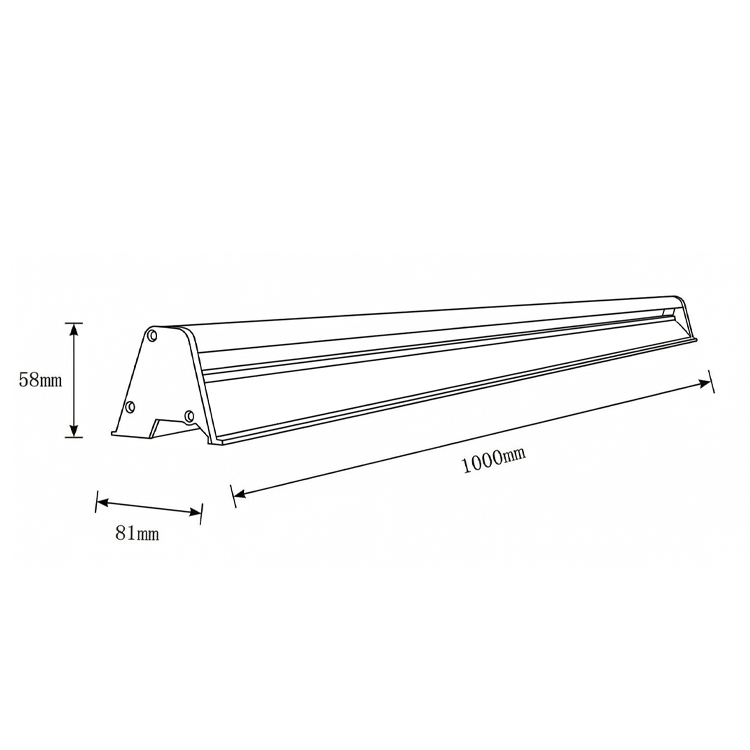

| Size | W81 × H58 × L1000 mm |
| Material | Aluminum + Tempered Glass |
| Surface Colour | Silver |
Why Choose This Surface Mounted Linear Ground Light?
- Low-profile surface-mounted installation for easy deployment.
- Precision grazing optics for comfortable pathway lighting.
- Modular design enables continuous linear illumination.
- Robust aluminum construction with rounded safety edges.
- High-efficiency OSRAM LEDs for reliable performance.
- IP66-rated protection for demanding outdoor environments.
- Ideal for landscape, architectural, and commercial lighting projects.
The Surface-Mounted Linear Ground Light combines architectural aesthetics with practical performance, offering designers and contractors a reliable solution for creating continuous, glare-controlled lighting across pathways, plazas, and modern outdoor spaces.
