Product Overview

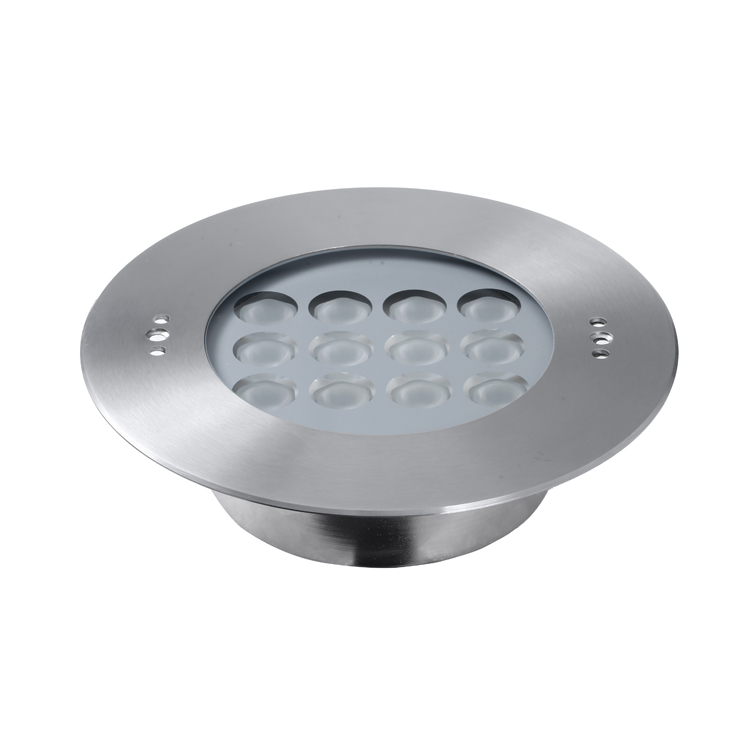

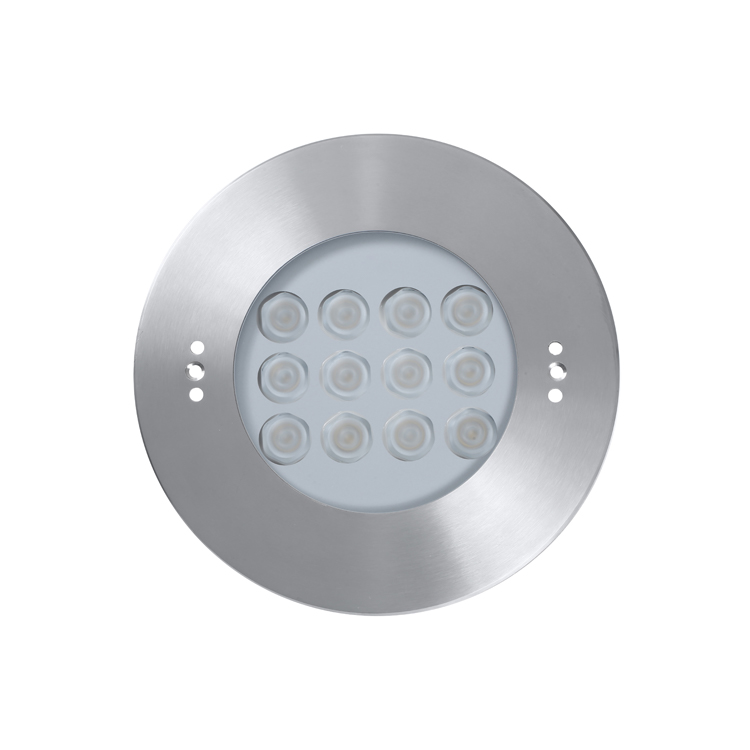

The 24W LED Underwater Light is a premium architectural underwater luminaire engineered for long-term operation in demanding aquatic environments. Constructed from marine-grade SUS316 stainless steel with an 8 mm tempered glass lens, it delivers outstanding corrosion resistance, impact strength, and optical performance for fountains, pools, ponds, and landscape water features.
Powered by high-efficiency OSRAM or CREE LEDs, the fixture provides excellent luminous efficacy, stable color consistency, and high color rendering for professional underwater illumination. The robust waterproof construction ensures continuous IP68 underwater operation, while the environmentally friendly ABS embedded housing and integrated water stopper provide secure installation and long-term reliability.
The luminaire also supports a variety of professional dimming and lighting control systems, making it suitable for sophisticated architectural lighting projects.
Product Features
Professional Underwater Design
- Designed for continuous underwater operation.
- IP68 waterproof protection.
- Extremely low water leakage probability for long-term reliability.
Marine-Grade Construction
- SUS316 titanium-coated stainless steel front cover.
- Sandblasted and passivated SUS316 housing.
- Excellent resistance to corrosion, salt spray, and harsh water environments.
High Optical Performance
- 8 mm high-strength tempered glass.
- High light transmittance of 90–95%.
- Outstanding impact and abrasion resistance.
Premium LED Technology
- High-performance OSRAM / CREE LEDs.
- Excellent color consistency.
- CRI >80 (optional CRI >90).
Advanced Lighting Control
Compatible with professional lighting systems:
- DMX512
- DALI
- 1–10V
- TRIAC
- PWM Dimming
Reliable Installation
- Environmentally friendly ABS embedded housing.
- Integrated water stopper.
- Supplied with 3-meter cable.
- Recessed installation with embedded part included.
Applications
- Decorative fountains
- Swimming pools
- Waterfalls
- Reflecting pools
- Landscape ponds
- Hotel water features
- Public plazas
- Architectural water installations
- Marine landscape projects
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | LED Underwater Light |
| Power | 24.5W |
| Luminous Flux | 1440 lm |
| CCT | 3000K |
| Beam Angle | 24° / 36° / 60° |
| IP Rating | IP68 |
| Input Voltage | DC24V |
| LED Chip | OSRAM / CREE |
| LED Driver | N/A |

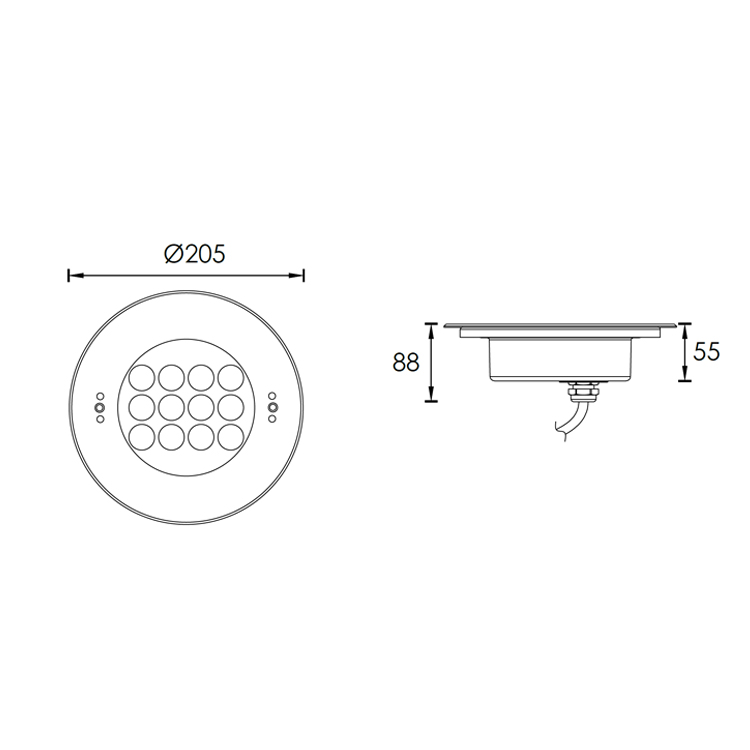

| Size | Ø205 × H55 mm |
| Material | SUS316 Stainless Steel |
| Surface Colour | Stainless Steel |
Standard Configuration
- 3 m waterproof cable
- Integrated water stopper
- ABS embedded housing
- Embedded installation
Why Choose This 24W LED Underwater Light?
- Continuous IP68 underwater operation for reliable long-term performance.
- Marine-grade SUS316 stainless steel with exceptional corrosion resistance.
- High-transmittance 8 mm tempered glass for maximum optical efficiency.
- Premium OSRAM/CREE LEDs with stable, high-quality illumination.
- Supports DMX512, DALI, PWM, TRIAC, and 1–10V dimming systems.
- ABS embedded housing simplifies installation and improves durability.
- Ideal for fountains, pools, ponds, and professional architectural underwater lighting.
The 24W LED Underwater Light combines premium materials, advanced waterproof engineering, and professional lighting performance, making it an excellent solution for demanding underwater architectural and landscape lighting projects.
