Product Overview
The Architectural Wall Light is a high-performance LED luminaire engineered for precise facade illumination and architectural accent lighting. Combining a minimalist industrial design with advanced optical performance, it delivers uniform illumination while enhancing the visual character of modern buildings.
Its dual-cavity construction separates the optical chamber from the driver compartment, providing superior heat dissipation and extending the lifespan of the lighting system. Manufactured from ADC12 die-cast aluminum with a UV-resistant polyester powder coating, the luminaire offers excellent corrosion resistance for long-term outdoor performance.
Featuring premium CREE LEDs, high-transmittance tempered safety glass, and integrated professional-grade drivers, the fixture delivers reliable illumination for demanding architectural lighting projects. It also supports DMX512 control and dimming, making it suitable for both static and dynamic lighting applications.
Product Features
Professional Architectural Lighting
- Clean, minimalist industrial design.
- Ideal for modern architectural facades.
- Enhances building texture and visual depth.
Dual-Cavity Heat Dissipation
- Independent optical and driver chambers.
- Efficient thermal management.
- Improves LED performance and service life.
Premium ADC12 Aluminum Housing
- High-strength die-cast aluminum construction.
- Excellent corrosion resistance.
- UV-resistant outdoor powder coating.
High Optical Efficiency
- 4 mm ultra-clear tempered safety glass.
- Excellent light transmission.
- Uniform and efficient beam projection.
Premium LED Performance
- High-quality CREE LED chips.
- Consistent color output.
- Stable brightness with long operating life.
Reliable Driver System
- Integrated high-quality electronic components.
- Stable operation with low failure rate.
- Supports DMX512 control and dimming.
Multiple Beam Options
Available with beam distributions to suit different architectural lighting applications:
- 120° for wide wall washing
- 45° × 60° for focused facade illumination
Applications
- Building facades
- Commercial architecture
- Hotels and resorts
- Office buildings
- Museums
- Public buildings
- Bridges
- Landscape architecture
- Urban lighting projects
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Architectural Wall Light |
| Power | 25W / 45W |
| CCT | 3000K |
| Beam Angle | 120° / 45° × 60° |
| IP Rating | IP65 |
| Input Voltage | AC220–240V |
| LED Chip | CREE |
| LED Driver | DONE |
| Material | Aluminum |
| Surface Colour | Grey |

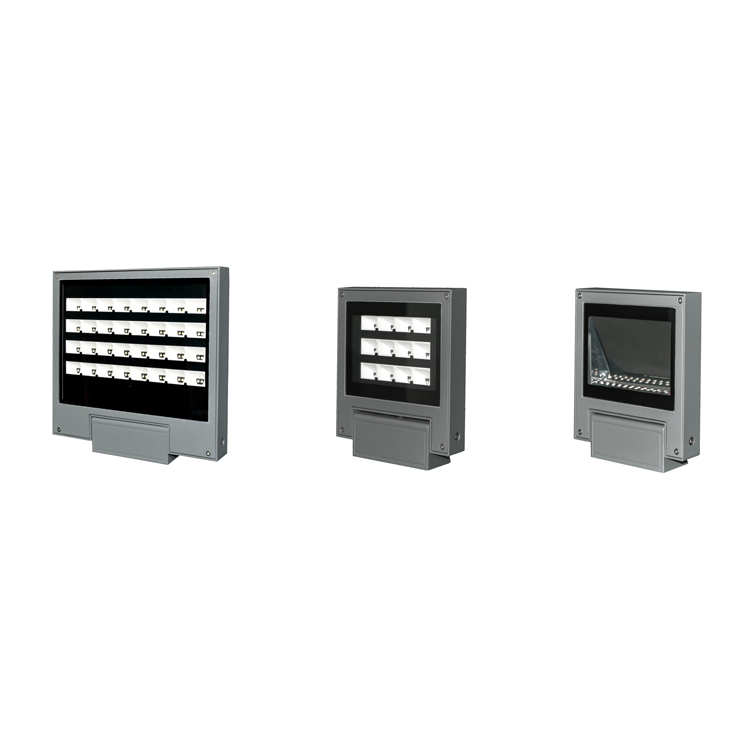

Available Models

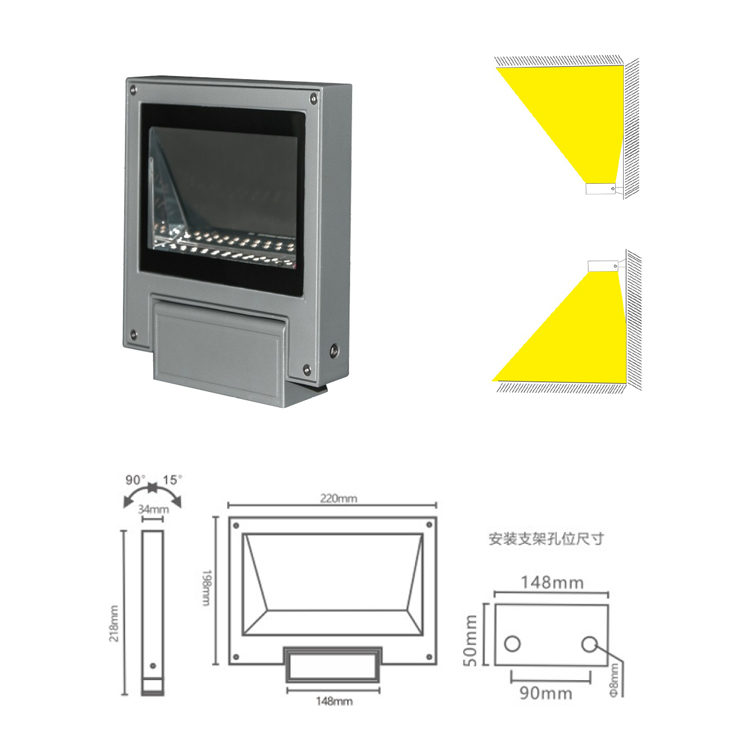

| Power | Beam Angle | Dimensions (L × W × H) |
|---|---|---|
| 25W | 120° | 220 × 34 × 218 mm |
| 25W | 45° × 60° | 220 × 34 × 218 mm |
| 45W | 45° × 60° | 320 × 40 × 295 mm |
Why Choose This Architectural Wall Light?
- Minimalist architectural design with industrial aesthetics.
- Dual-cavity thermal structure for superior heat dissipation.
- Premium CREE LEDs for reliable, high-quality illumination.
- Durable ADC12 die-cast aluminum housing with UV-resistant finish.
- High-transmittance tempered safety glass for maximum optical efficiency.
- Supports DMX512 control for intelligent lighting systems.
- Available in wide flood (120°) and focused (45° × 60°) beam options.
- Ideal for professional architectural facade and landscape lighting projects.
The Architectural Wall Light delivers exceptional durability, efficient thermal performance, and precise optical control, making it an ideal solution for architects, lighting designers, and contractors seeking reliable facade lighting for commercial and public spaces.
