Product Features
-
Durable Die-Cast Housing
ADC12 aluminum body with waterproof breather plug balances pressure and prevents condensation, ensuring long-lasting outdoor performance. -
Anti-Glare Design
Built-in glare shield with optional accessories reduces unwanted light spill while enhancing visual comfort. -
Efficient Heat Dissipation
Slim housing enables fast heat transfer, lowering LED temperature and improving efficiency. Integrated power supply keeps a clean, compact design. -
Material Optimization
Combines high-conductivity aluminum and die-cast materials for small size with high power output. -
Flexible Angle Adjustment
Manual XY-axis rotation (0–90°) allows precise beam control in all directions. -
Easy Installation & Control
Back-mounted curved bracket ensures quick installation. Supports DMX512 (1990) protocol and ON/OFF power control. -
Versatile Applications
Perfect for parks, plazas, building facades, scenic roads, landmarks, or accent and color-wash lighting.
Technical Specifications
| Parameter | Specification |
|---|---|

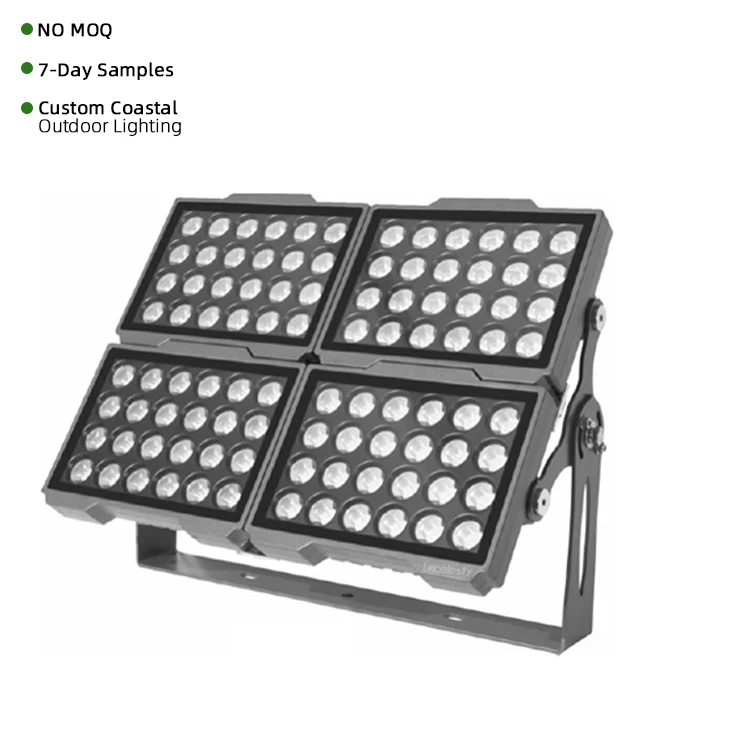

| Product Name | High Brightness LED Floodlight |
| Power | 240W / 288W / 360W / 400W |
| Lumen Output | 100lm/W |
| CCT Options | 3000K / 4000K / 6000K / R / G / B |
| Beam Angle | 2.5° / 15° / 25° / 30° / 45° / 60° |
| IP Rating | IP65 |
| Input Voltage | AC220-240V (Option: DC24V) |
| LED Chip | 240 × CREE LEDs |
| LED Driver | MOSO / KEGU |

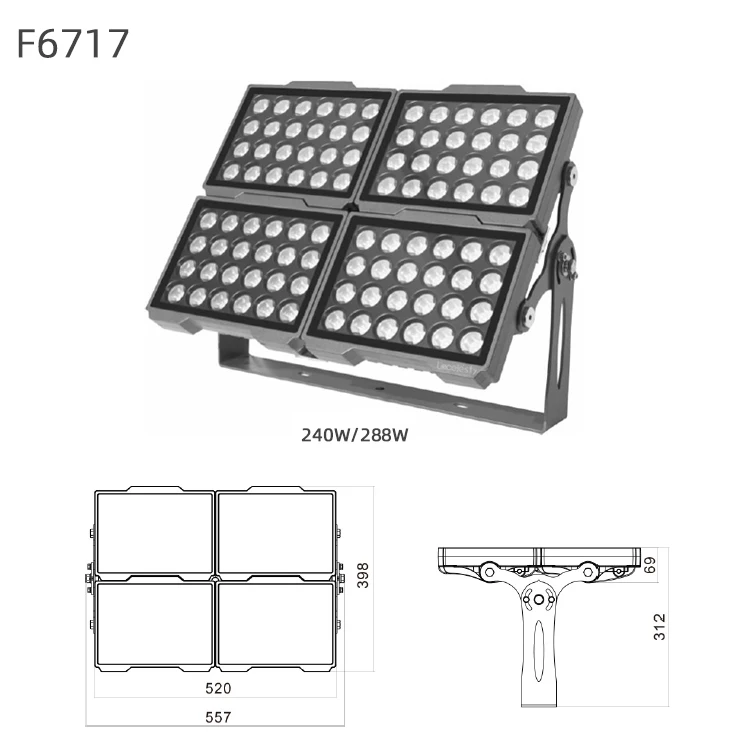

| Size | 557 × 398 × 312 mm |
| Material | Die-cast Aluminum |
| Surface Colour | Black / White / Dark Grey / Light Grey |
Why Choose Us
● Samples:7-10 days Production: 20-30 days
● Custom Colors & Sizes
● Lighting Design Service
● One-Stop Sourcing
FAQ
Lacelesty: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
